In Stock Hot Product
UFTZ802Y

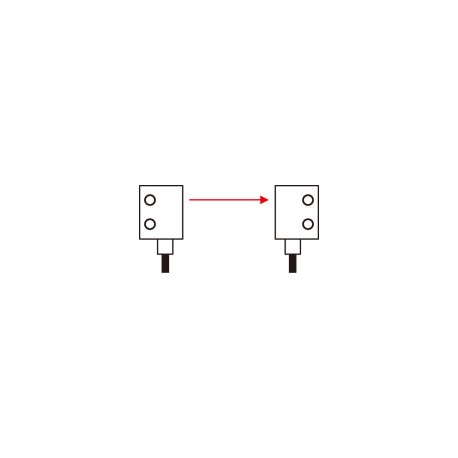

UFTZ802Y FTZ802Y FT-Z802Y PANASONIC Fiber (thru-beam, chemical resistant, 90° light output, 2m)
$0.00USD
4439 in stock
Key Specifications
Item:Specifications
Details:Chemical-resistant Fiber
Product:Thru-beam type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Chemical-resistant Fiber |
| Product | Thru-beam type Fiber |
| Free-cut | Available |
| Fiber type | Flat type |
| Application | Chemical-resistant |
| Part Number | FT-Z802Y |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Chemical-resistant Fiber / Oil-resistant |
| Sensing mode | Thru-beam type |
| Mounting lens | Not available |
| Beam direction | Side-view |
| Product Number | FT-Z802Y |
| Fiber head length | W7 x H15 x D13 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 3,100 mm 122.047 in (FX-500 series) |
| Sensing range（FAST） | 1,900 mm 74.803 in (FX-500 series) |
| Sensing range（H-SP） | 470 mm 18.504 in (FX-500 series) |
| Sensing range（HYPR） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（LONG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（U-LG） | 3,600 mm 141.732 in (FX-500 series) |
| Allowable bending radius | R25 mm |
| Mounting protective tube | Not available |
| Beam axis dia./ Spot diameter | dia. 3.7 mm |
| Environmental resistance : Protection | IP68G |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | 0 degrees |
Product Description
Fiber optic barrier, rectangular 13x15 mm, chemical resistant, 2m cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
