UFTZ30EW
UFTZ30EW FT-Z30EW PANASONIC Fiber (thru-beam, flat type, 3 x 12 x 8mm, side sensing, bending radius R1, 2m, ..
$0.00USD
3573 in stock
Key Specifications
Item:Specifications
Details:Flat Type Fiber
Product:Thru-beam type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Flat Type Fiber |
| Product | Thru-beam type Fiber |
| Free-cut | Available |
| Fiber type | Flat type |
| Application | General-purpose |
| Part Number | FT-Z30EW |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Flat Type Fiber |
| Sensing mode | Thru-beam type |
| Mounting lens | Not available |
| Beam direction | Side-sensing |
| Product Number | FT-Z30EW |

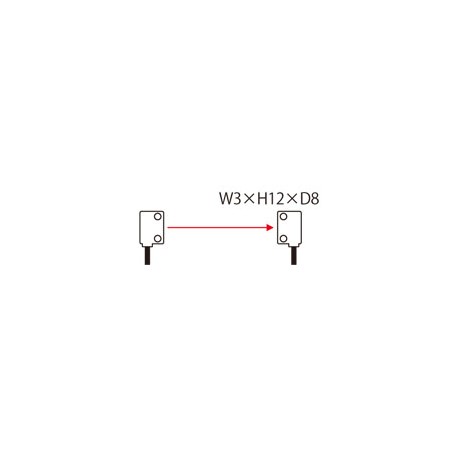

| Fiber head length | W3 x H12 x D8 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 3,400 mm 133.858 in (FX-500 series) |
| Sensing range（FAST） | 2,000 mm 78.740 in (FX-500 series) |
| Sensing range（H-SP） | 630 mm 24.803 in (FX-500 series) |
| Sensing range（HYPR） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（LONG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（U-LG） | 3,600 mm 141.732 in (FX-500 series) |
| Allowable bending radius | R1 mm |
| Mounting protective tube | Not available |
| Beam axis dia./ Spot diameter | 2 x 3 mm |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
Product Description
Fiber optic barrier, flat, 3 x 12 x 8mm, side detection, R1 bend radius, 2m, IP40
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
