In Stock Hot Product
UFTZ20W
UFTZ20W FT-Z20W PANASONIC Fiber (thru-beam, flat type, 10 x 7 x 2mm, front sensing, with boss, bending radiu..
$0.00USD
4827 in stock
Key Specifications
Item:Specifications
Details:Flat Type Fiber
Product:Thru-beam type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Flat Type Fiber |
| Product | Thru-beam type Fiber |
| Free-cut | Available |
| Fiber type | Flat type, with boss |
| Application | General-purpose |
| Part Number | FT-Z20W |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Flat Type Fiber |
| Sensing mode | Thru-beam type |
| Mounting lens | Not available |
| Beam direction | Front sensing |
| Product Number | FT-Z20W |

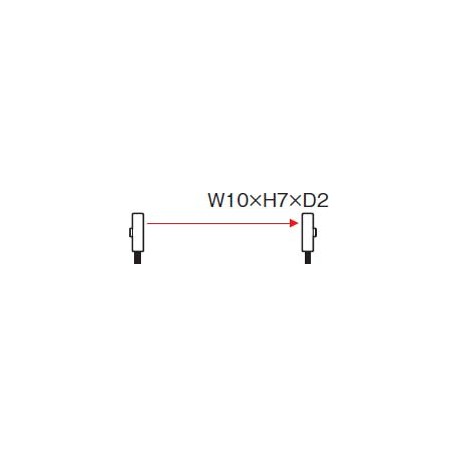

| Fiber head length | W10 x H7 x D2 mm |
| Fiber cable length | 1 m |
| Sensing range（STD） | 620 mm 24.409 in (FX-500 series) |
| Sensing range（FAST） | 420 mm 16.535 in (FX-500 series) |
| Sensing range（H-SP） | 130 mm 5.118 in (FX-500 series) |
| Sensing range（HYPR） | 1,600 mm 62.992 in (FX-500 series) |
| Sensing range（LONG） | 1,100 mm 43.307 in (FX-500 series) |
| Sensing range（U-LG） | 1,500 mm 59.055 in (FX-500 series) |
| Allowable bending radius | R1 mm |
| Mounting protective tube | Not available |
| Beam axis dia./ Spot diameter | dia. 1.5 mm |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
Product Description
Fiber optic barrier, flat, 10 x 7 x 2mm, front sensing, with guide, radius of curvature R2, 1m, IP67
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
