In Stock Hot Product
UFTV40

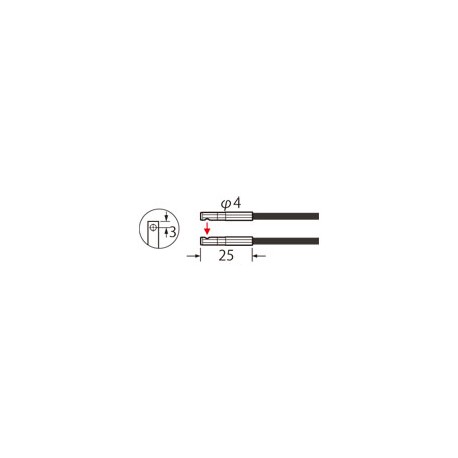

UFTV40 FT-V40 PANASONIC Fiber (thru-beam, cylindrical, ø 4mm, side-view, bending radius R4, 2m, IP50)
$0.00USD
4099 in stock
Key Specifications
Item:Specifications
Details:Cylindrical Type Fiber
Product:Thru-beam type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Cylindrical Type Fiber |
| Product | Thru-beam type Fiber |
| Free-cut | Available |
| Fiber type | Cylindrical type Side-view |
| Application | General-purpose |
| Part Number | FT-V40 |
| With sleeve | No |
| Product name | Cylindrical Type Fiber |
| Sensing mode | Thru-beam type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FT-V40 |
| Fiber head dia. | dia. 4 mm |
| Fiber head length | 25 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 3,500 mm 137.795 in (FX-500 series) |
| Sensing range（FAST） | 2,400 mm 94.488 in (FX-500 series) |
| Sensing range（H-SP） | 850 mm 33.465 in (FX-500 series) |
| Sensing range（HYPR） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（LONG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（U-LG） | 3,600 mm 141.732 in (FX-500 series) |
| Allowable bending radius | R4 mm |
| Mounting protective tube | Not available |
| Beam axis dia./ Spot diameter | dia. 2.5 mm |
| Environmental resistance : Protection | IP50 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
Product Description
Fiber optic Flexible barrier, cylindrical, ø 4mm., side detection, bending radius, cable 2 m., IP50
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
