In Stock Hot Product
UFTV23

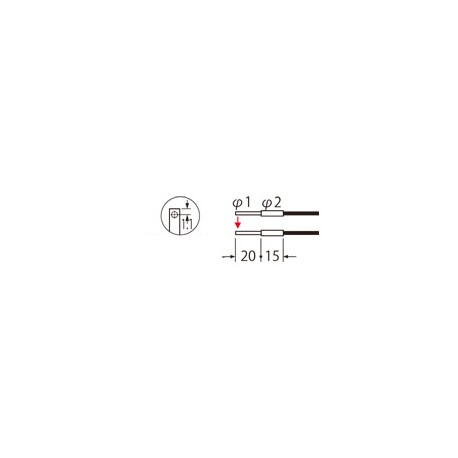

UFTV23 FT-V23 PANASONIC Fiber (thru-beam, cylindrical, ø 2mm, side-view, bending radius R4, 2m, IP30)
$0.00USD
3667 in stock
Key Specifications
Item:Specifications
Details:Sleeve type Fiber
Product:Thru-beam type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Sleeve type Fiber |
| Product | Thru-beam type Fiber |
| Free-cut | Available |
| Fiber type | Sleeve type |
| Application | General-purpose |
| Part Number | FT-V23 |
| Sleeve dia. | dia. 1 mm |
| With sleeve | Yes |
| Product name | Sleeve Fiber |
| Sensing mode | Thru-beam type |
| Mounting lens | Not available |
| Sleeve length | 20 mm |
| Beam direction | Side-view |
| Product Number | FT-V23 |
| Fiber head dia. | dia. 2 mm |
| Fiber head length | 15 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 450 mm 17.717 in (FX-500 series) |
| Sensing range（FAST） | 280 mm 11.024 in (FX-500 series) |
| Sensing range（H-SP） | 90 mm 3.543 in (FX-500 series) |
| Sensing range（HYPR） | 1,800 mm 70.866 in (FX-500 series) |
| Sensing range（LONG） | 880 mm 34.646 in (FX-500 series) |
| Sensing range（U-LG） | 1,000 mm 39.370 in (FX-500 series) |
| Allowable bending radius | R4 mm |
| Mounting protective tube | Not available |
| Beam axis dia./ Spot diameter | dia. 0.75 mm |
| Environmental resistance : Protection | IP30 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
Product Description
Fiber Optic Flexible Barrier, Cylindrical, ø 2mm, Side Sensing, Bend Radius R4, 2m, IP30
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
