In Stock Hot Product
UFTH20WM1

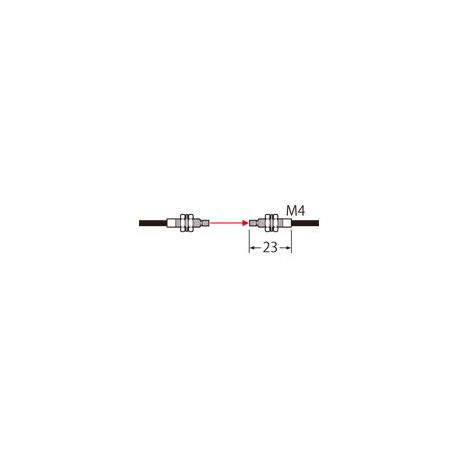

UFTH20WM1 FTH20WM1 FT-H20W-M1 PANASONIC Fiber (thru-beam, -60°C to +200°C, M4, 1m)
$0.00USD
3299 in stock
Key Specifications
Item:Specifications
Details:Heat-resistant Fiber
Product:Thru-beam type Fiber
Free-cut:Not available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Heat-resistant Fiber |
| Product | Thru-beam type Fiber |
| Free-cut | Not available |
| Fiber type | Heat-resistant |
| Application | Heat-resistant |
| Part Number | FT-H20W-M1 |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Heat-resistant Fiber |
| Sensing mode | Thru-beam type |
| Mounting lens | Available |
| Beam direction | Top-view |
| Product Number | FT-H20W-M1 |
| Applicable lens | FX-LE1,FX-LE2,FX-SV1 |
| Fiber head dia. | M4 |
| Fiber head length | 23 mm |
| Fiber cable length | 1 m |
| Sensing range（STD） | 470 mm 18.504 in (FX-500 series) |
| Sensing range（FAST） | 300 mm 11.811 in (FX-500 series) |
| Sensing range（H-SP） | 90 mm 3.543 in (FX-500 series) |
| Sensing range（HYPR） | 1,600 mm 62.992 in (FX-500 series) |
| Sensing range（LONG） | 840 mm 33.071 in (FX-500 series) |
| Sensing range（U-LG） | 1,000 mm 39.370 in (FX-500 series) |
| Allowable bending radius | R10 mm |
| Mounting protective tube | Not available |
| Beam axis dia./ Spot diameter | dia. 0.8 mm |
| Environmental resistance : Ambient temperature MAX | 200 degrees |
| Environmental resistance : Ambient temperature MIN | -60 degrees |
Product Description
Fiber optic barrier, M4, heat resistant, range -60 to 200 ºC, cable 1m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
