UFTH20VJ50S
UFTH20VJ50S FTH20VJ50S FT-H20-VJ50-S PANASONIC Fiber, thru-beam, heat-resistant 200°C, bending radius R18, 5..
$0.00USD
3759 in stock
Key Specifications
Item:Specifications
Details:Heat-resistant Fiber
Product:Thru-beam type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Heat-resistant Fiber |
| Product | Thru-beam type Fiber |
| Free-cut | Available |
| Fiber type | Heat-resistant (joint) |
| Application | Heat-resistant |
| Part Number | FT-H20-VJ50-S |
| With sleeve | No |
| Product name | Heat-resistant Fiber |
| Sensing mode | Thru-beam type |
| Mounting lens | Not available |
| Beam direction | Side-view |
| Product Number | FT-H20-VJ50-S |

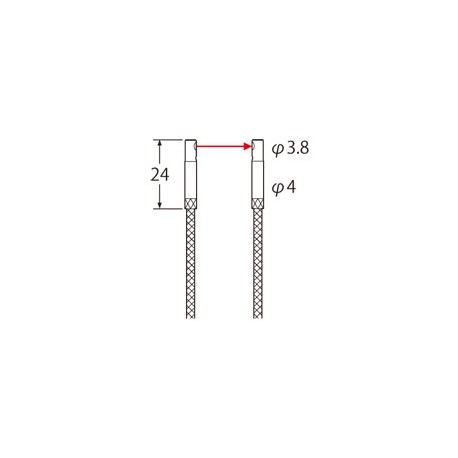

| Fiber head dia. | dia. 3.8 mm |
| Fiber head length | 24 mm |
| Fiber cable length | 500 mm(Note) Fiber length (fixed-length) for heat-resistant fiber side. Fiber length for ordinary temperature side is 2 m 6.562 ft (free-cut) . |
| Sensing range（STD） | 600 mm 23.622 in (FX-500 series) |
| Sensing range（FAST） | 390 mm 15.354 in (FX-500 series) |
| Sensing range（H-SP） | 120 mm 4.724 in (FX-500 series) |
| Sensing range（HYPR） | 2,100 mm 82.677 in (FX-500 series) |
| Sensing range（LONG） | 980 mm 38.583 in (FX-500 series) |
| Sensing range（U-LG） | 1,300 mm 51.181 in (FX-500 series) |
| Allowable bending radius | Heatresistant side R18 mm(Note) Bending durable fiber R4 mm R0.157 in or more for ordinary temperature side. |
| Mounting protective tube | Not available |
| Beam axis dia./ Spot diameter | dia. 1.2 mm |
| Environmental resistance : Ambient temperature MAX | 200 degrees |
| Environmental resistance : Ambient temperature MIN | -60 degrees |
Product Description
Fiber optic barrier. Side detection. Temperature resistant. With tube, 500 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
