UFT40

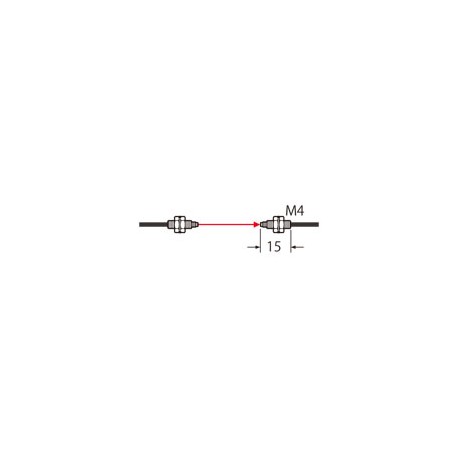

UFT40 FT-40 PANASONIC Fiber, Thru-beam, M4, bending radius R4, 2m, IP 67
$0.00USD
3920 in stock
Key Specifications
Item:Specifications
Details:Super Quality Fiber
Product:Thru-beam type Fiber
Free-cut:Not available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Super Quality Fiber |
| Product | Thru-beam type Fiber |
| Free-cut | Not available |
| Fiber type | Threaded type |
| Application | General-purpose |
| Part Number | FT-40 |
| With sleeve | No |
| Product name | Super Quality Fiber |
| Sensing mode | Thru-beam type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FT-40 |
| Fiber head dia. | M4 |
| Fiber head length | 15 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 1,200 mm 47.244 in (FX-500 series) |
| Sensing range（FAST） | 530 mm 20.866 in (FX-500 series) |
| Sensing range（H-SP） | 190 mm 7.480 in (FX-500 series) |
| Sensing range（HYPR） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（LONG） | 1,700 mm 66.929 in (FX-500 series) |
| Sensing range（U-LG） | 2,200 mm 86.614 in (FX-500 series) |
| Allowable bending radius | R4 mm |
| Mounting protective tube | Not available |
| Optical transmission loss | plus or minus 10 % |
| Beam axis dia./ Spot diameter | dia. 1 mm |
| Environmental resistance : Protection | IP67 |
| Beam axis accuracy : Beam axis position | 150 micro m |
| Beam axis accuracy : Beam axis Inclination | plus or minus 2 degrees |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
Product Description
Barrier Fiber Optics, "Super Quality" Series, "Tough" Model, M4; Range of Detection. 3600mm (FX500, HYPER mode), length. 2m, radius curvat. 4mm (R4), IP67, temp. range -55/+80ºC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
