UFRKZ22E
UFRKZ22E FR-KZ22E PANASONIC Fiber (retroreflective, wafer mapping type, side sensing, 4 x 2 x 21.5mm, bendin..
$0.00USD
3548 in stock
Key Specifications
Item:Specifications
Details:Narrow Beam Fiber
Product:Retroreflective type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Narrow Beam Fiber |
| Product | Retroreflective type Fiber |
| Free-cut | Available |
| Fiber type | Ultra-narrow beam |
| Application | Ultra-narrow beam |
| Part Number | FR-KZ22E |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Retroreflective Type Fiber |
| Sensing mode | Retroreflective type |
| Mounting lens | Not available |
| Beam direction | Side-view |
| Product Number | FR-KZ22E |

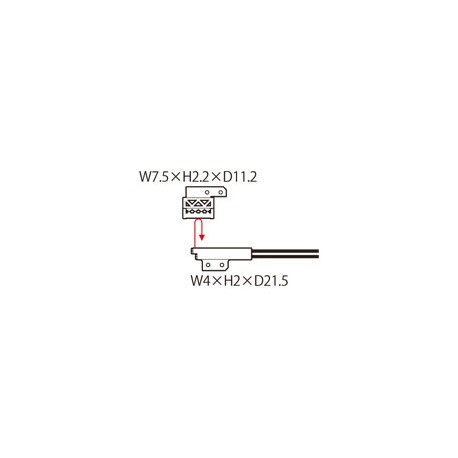

| Fiber head length | W4 x H2 x D21.5 mmW7.5 x H2.2 x D11.2 mm (Retroreflective) |
| Fiber cable length | 2 m |
| Sensing range（STD） | 15 to 310 mm 0.591 to 12.205 in (FX-500 series) |
| Sensing range（FAST） | 15 to 220 mm 0.591 to 8.661 in (FX-500 series) |
| Sensing range（H-SP） | 15 to 100 mm 0.591 to 3.937 in (FX-500 series) |
| Sensing range（HYPR） | 15 to 570 mm 0.591 to 22.441 in (FX-500 series) |
| Sensing range（LONG） | 15 to 410 mm 0.591 to 16.142 in (FX-500 series) |
| Sensing range（U-LG） | 15 to 460 mm 0.591 to 18.110 in (FX-500 series) |
| Allowable bending radius | R2 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Protection | IP30 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
Product Description
Optical fiber reflection on mirror, for wafer mapping, side detection, 4 x 2 x 21.5mm, radius curvature 2mm (R2), long. 2m, cutable, IP30, temp range. -40/+60ºC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
