UFDZ50HW
UFDZ50HW FD-Z50HW PANASONIC Fiber (reflective, narrow beam type, 5.2 x 9.5 x 15mm, top sensing, bending radi..
$0.00USD
4936 in stock
Key Specifications
Item:Specifications
Details:Narrow Beam Fiber
Product:Reflective type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Narrow Beam Fiber |
| Product | Reflective type Fiber |
| Free-cut | Available |
| Fiber type | Long range |
| Application | Transparent tubes sensing |
| Part Number | FD-Z50HW |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Narrow Beam Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FD-Z50HW |

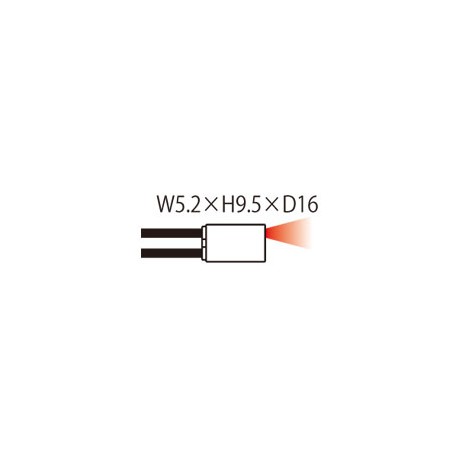

| Fiber head length | W5.2 x H9.5 x D16 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 10 to 650 mm 0.394 to 25.591 in (FX-500 series) |
| Sensing range（FAST） | 10 to 410 mm 0.394 to 16.142 in (FX-500 series) |
| Sensing range（H-SP） | 15 to 130 mm 0.591 to 5.118 in (FX-500 series) |
| Sensing range（HYPR） | 10 to 2,500 mm 0.394 to 98.425 in (FX-500 series) |
| Sensing range（LONG） | 10 to 1,000 mm 0.394 to 39.370 in (FX-500 series) |
| Sensing range（U-LG） | 10 to 1,100 mm 0.394 to 43.307 in (FX-500 series) |
| Allowable bending radius | R1 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
Product Description
Direct Reflection Optical Fiber, Narrow Beam, 5.2 x 9.5 x 15mm, Front Sensing, Bend Radius R1, 2500mm, IP40)
