UFDR41

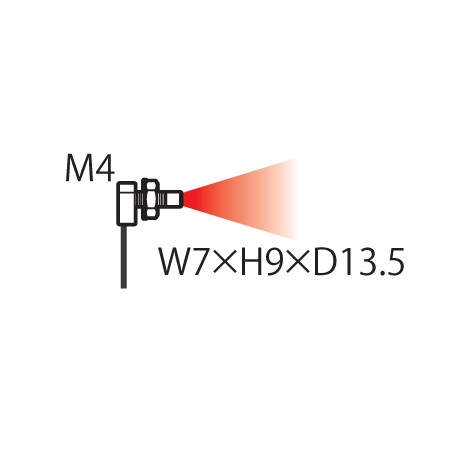

UFDR41 FD-R41 PANASONIC Fiber, reflective type, M4, beam diam. 0.75 mm, 2m, IP67
$0.00USD
4378 in stock
Key Specifications
Item:Specifications
Details:Square Head type Fiber
Product:Reflective type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Square Head type Fiber |
| Product | Reflective type Fiber |
| Free-cut | Available |
| Fiber type | Square head type |
| Application | General-purpose |
| Part Number | FD-R41 |
| Semi-custom | Available |
| With sleeve | No |
| Product name | Square Head Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FD-R41 |
| Fiber head dia. | M4 |
| Fiber head length | W7 x H9 x D13.5 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 210 mm 8.268 in (FX-500 series) |
| Sensing range（FAST） | 100 mm 3.937 in (FX-500 series) |
| Sensing range（H-SP） | 34 mm 1.339 in (FX-500 series) |
| Sensing range（HYPR） | 710 mm 27.953 in (FX-500 series) |
| Sensing range（LONG） | 320 mm 12.598 in (FX-500 series) |
| Sensing range（U-LG） | 430 mm 16.929 in (FX-500 series) |
| Allowable bending radius | R2 mm |
| Mounting protective tube | Not available |
| Beam axis dia./ Spot diameter | dia. 0.75 mm |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
Product Description
Reflex fiber optics. direct, rectangular head, 90° projection, M4, "Tough" model; Detection range. 710 mm (FX500), curved radius. 2mm (R2), long. 2 m, cuttable, temp. range -55º/+80ºC, IP67
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
