UFDL23

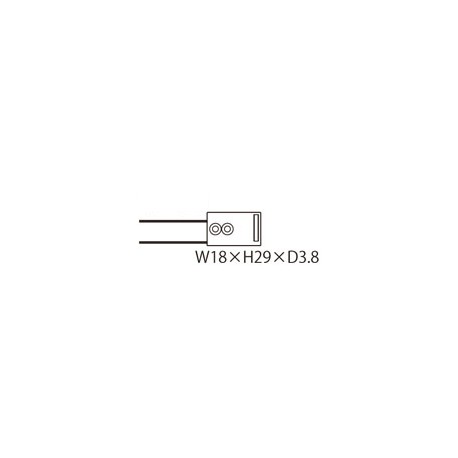

UFDL23 FD-L23 PANASONIC Fiber (convergent reflective, glass substrate detection type, 18 x 29 x 3.8mm, bendi..
$0.00USD
3101 in stock
Key Specifications
Item:Specifications
Details:Convergent Reflective type Fiber
Product:Convergent Reflective type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Convergent Reflective type Fiber |
| Product | Convergent Reflective type Fiber |
| Free-cut | Available |
| Fiber type | Glass substrate detection |
| Application | Glass substrate detection Seating confirmation |
| Part Number | FD-L23 |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Convergent Reflective Type Fiber |
| Sensing mode | Convergent Reflective type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FD-L23 |
| Fiber head length | W18 x H29 x D3.8 mm |
| Fiber cable length | 3 m |
| Sensing range（STD） | 0 to 29 mm 0 to 1.142 in (FX-500 series) |
| Sensing range（FAST） | 0 to 28 mm 0 to 1.102 in (FX-500 series) |
| Sensing range（H-SP） | 1.5 to 24 mm 0.059 to 0.945 in (FX-500 series) |
| Sensing range（HYPR） | 0 to 30 mm 0 to 1.181 in (FX-500 series) |
| Sensing range（LONG） | 0 to 30 mm 0 to 1.181 in (FX-500 series) |
| Sensing range（U-LG） | 0 to 30 mm 0 to 1.181 in (FX-500 series) |
| Allowable bending radius | R2 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | -20 degrees |
Product Description
Flexible direct reflection optical fiber, for glass substrate detection, 18 x 29 x 3.8mm, R2 bend radius, 3m, IP40
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
