UFDH35M2S6

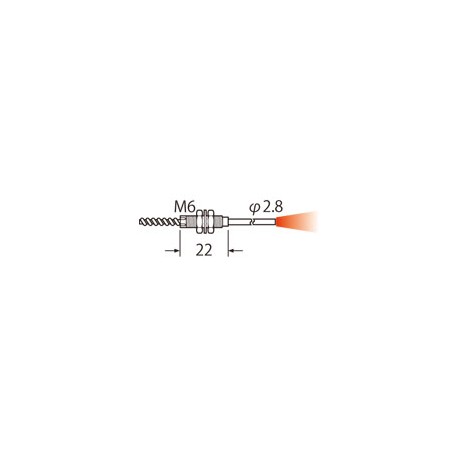

UFDH35M2S6 FDH35M2S6 FD-H35-M2S6 PANASONIC Fiber, Diffuse, sleeve, stainless steel tube -60 to 350°C, M6, 2m
$0.00USD
3675 in stock
Key Specifications
Item:Specifications
Details:Heat-resistant Fiber
Product:Reflective type Fiber
Free-cut:Not available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Heat-resistant Fiber |
| Product | Reflective type Fiber |
| Free-cut | Not available |
| Fiber type | Sleeve type |
| Application | Heat-resistant |
| Part Number | FD-H35-M2S6 |
| Semi-custom | Fiber length change |
| Sleeve dia. | dia. 2.8 mm |
| With sleeve | Yes |
| Product name | Heat-resistant Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Not available |
| Sleeve length | 60 mm |
| Beam direction | Top-view |
| Product Number | FD-H35-M2S6 |
| Fiber head dia. | M6 |
| Fiber head length | 22 mm |
| Fiber cable length | 2m |
| Sleeve bending radius | R10mm |
| Sensing range（STD） | 260 mm 10.236 in (FX-500 series) |
| Sensing range（FAST） | 150 mm 5.906 in (FX-500 series) |
| Sensing range（H-SP） | 45 mm 1.772 in (FX-500 series) |
| Sensing range（HYPR） | 720 mm 28.346 in (FX-500 series) |
| Sensing range（LONG） | 460 mm 18.110 in (FX-500 series) |
| Sensing range（U-LG） | 540 mm 21.260 in (FX-500 series) |
| Allowable bending radius | R25 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Ambient temperature MAX | 350 degrees |
| Environmental resistance : Ambient temperature MIN | -60 degrees |
Product Description
Direct Reflection Optical Fiber, M6, Heat Resistant, Range -60 to 350 °C, with 60 mm Tube
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
