UFDH20M1

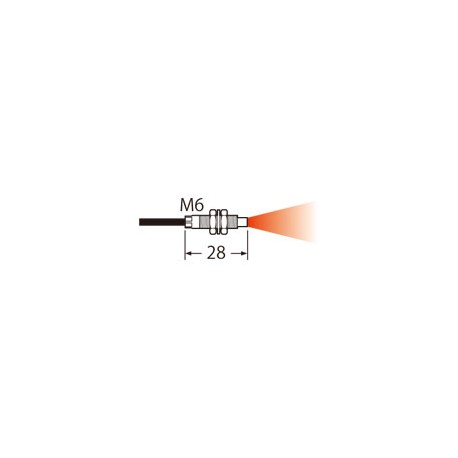

UFDH20M1 FDH20M1 FD-H20-M1 PANASONIC Fiber, Diffuse reflective, coaxial, silicone tube -60 to 200°C, M6, 1m
$0.00USD
4750 in stock
Key Specifications
Item:Specifications
Details:Heat-resistant Fiber
Product:Reflective type Fiber
Free-cut:Not available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Heat-resistant Fiber |
| Product | Reflective type Fiber |
| Free-cut | Not available |
| Fiber type | Heat-resistant |
| Application | Heat-resistant |
| Part Number | FD-H20-M1 |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Heat-resistant Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FD-H20-M1 |
| Fiber head dia. | M6 |
| Fiber head length | 28 mm |
| Fiber cable length | 1m |
| Sensing range（STD） | 330 mm 12.992 in (FX-500 series) |
| Sensing range（FAST） | 200 mm 7.874 in (FX-500 series) |
| Sensing range（H-SP） | 55 mm 2.165 in (FX-500 series) |
| Sensing range（HYPR） | 840 mm 33.071 in (FX-500 series) |
| Sensing range（LONG） | 500 mm 19.685 in (FX-500 series) |
| Sensing range（U-LG） | 550 mm 21.654 in (FX-500 series) |
| Allowable bending radius | R25 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Ambient temperature MAX | 200 degrees |
| Environmental resistance : Ambient temperature MIN | -60 degrees |
Product Description
Direct reflection optical fiber, M6, heat resistant, range -60 to 200 ºC, 1m flexible silicone cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
