In Stock Hot Product
UFDFA93
UFDFA93 FD-FA93 PANASONIC Fiber (reflective, liquid sensing, pipe-mountable type, 6.5 x 28.3 x 17mm, bending..
$0.00USD
3162 in stock
Key Specifications
Item:Specifications
Details:Liquid Leak / Liquid Detection Fiber
Product:Reflective type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Liquid Leak / Liquid Detection Fiber |
| Product | Reflective type Fiber |
| Free-cut | Available |
| Fiber type | Pipe-mountable type, Liquid sensing |
| Application | Liquid leak detection / Liquid sensing |
| Part Number | FD-FA93 |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Liquid Leak / Liquid Detection Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FD-FA93 |

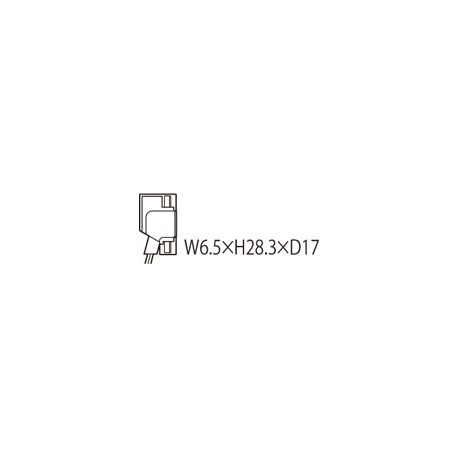

| Fiber head length | W6.5 x H28.3 x D17 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
Product Description
Fiber Optic Flexible Direct Reflection, Liquid Detection, Pipe Mounting, 6.5 x 28.3 x 17mm, Bend Radius R4, 2m, IP40
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
