UFDF71
UFDF71 FD-F71 PANASONIC Fiber (reflective, liquid leak detection, pipe-mountable type, 20 x 30 x 10mm, bendi..
$0.00USD
3462 in stock
Key Specifications
Item:Specifications
Details:Liquid Leak / Liquid Detection Fiber
Product:Reflective type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Liquid Leak / Liquid Detection Fiber |
| Product | Reflective type Fiber |
| Free-cut | Available |
| Fiber type | Contact type, Liquid leak detection |
| Application | Liquid leak detection / Liquid sensing |
| Part Number | FD-F71 |
| Semi-custom | Fiber length change, Extended protective tube |
| With sleeve | No |
| Product name | Liquid Leak / Liquid Detection Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FD-F71 |

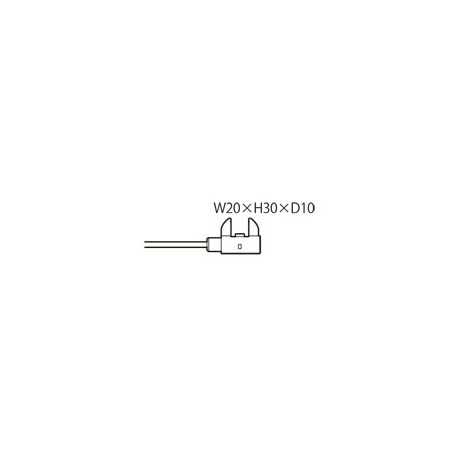

| Fiber head length | W20 x H30 x D10 mm |
| Fiber cable length | 5 m |
| Allowable bending radius | R4 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -20 degrees |
Product Description
Flexible Fiber Optic Direct Reflection, Liquid Leak Detection, Pipe Mounting, 20 x 30 x 10mm, Bend Radius R4, 5m, IP67
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
