UFDEG31

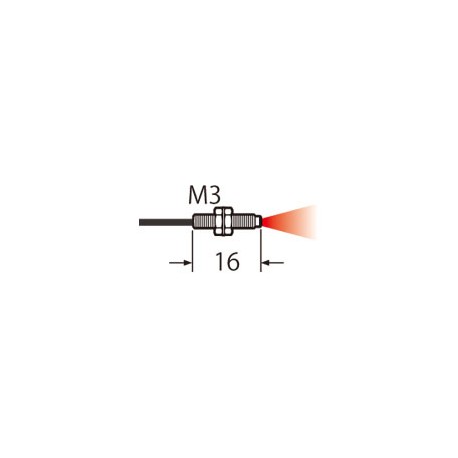

UFDEG31 FD-EG31 PANASONIC Fiber (reflective, coaxial, bending radius R4, M3, 0.5m, IP40)
$0.00USD
4561 in stock
Key Specifications
Item:Specifications
Details:Small Spot Fiber
Product:Reflective type Fiber
Free-cut:Not available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Small Spot Fiber |
| Product | Reflective type Fiber |
| Free-cut | Not available |
| Fiber type | Threaded type, Ultra-small diameter |
| Application | General-purpose |
| Part Number | FD-EG31 |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Threaded Type Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Available |
| Beam direction | Top-view |
| Product Number | FD-EG31 |
| Applicable lens | FX-MR6, FX-MR3, FX-MR7, FX-MR8, FX-MR9 |
| Fiber head dia. | M3 |
| Fiber head length | 16 mm |
| Fiber cable length | 500 mm |
| Sensing range（STD） | 20 mm 0.787 in (FX-500 series) |
| Sensing range（FAST） | 12 mm 0.472 in (FX-500 series) |
| Sensing range（H-SP） | 3.5 mm 0.138 in (FX-500 series) |
| Sensing range（HYPR） | 85 mm 3.346 in (FX-500 series) |
| Sensing range（LONG） | 35 mm 1.378 in (FX-500 series) |
| Sensing range（U-LG） | 45 mm 1.772 in (FX-500 series) |
| Allowable bending radius | R4 mm |
| Mounting protective tube | Not available |
| Beam axis dia./ Spot diameter | dia. 0.1 mm dia. 0.004 in (FX-MR6), dia. 0.15 mm dia. 0.006 in (FX-MR3), dia. 0.1 mm dia. 0.004 in (FX-MR7), dia. 0.4 to dia. 2.0 mm dia. 0.016 to dia. 0.079 in (FX-MR8), dia. 4.0 mm dia. 0.157 in (FX-MR9) |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -20 degrees |
Product Description
Reflex fiber optics. direct, M3, high precision, coaxial, concentrated beam (small "spot"), lens mountable, radius curvat. 4mm (R4), detection range. 85mm (FX500), long. 0.5m, IP40, temp. range -20/+6
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
