UFDE23

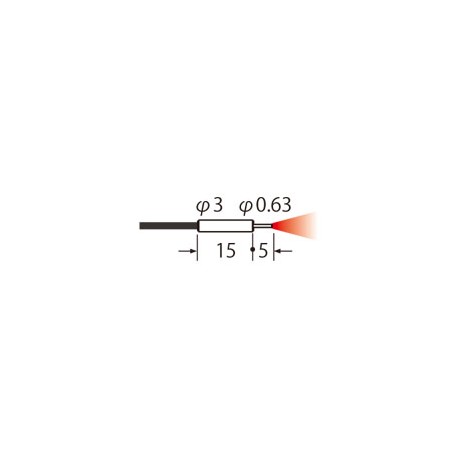

UFDE23 FD-E23 PANASONIC Fiber (reflective, cylindrical, ø 3mm, bending radius R4, 1m, IP40)
$0.00USD
4537 in stock
Key Specifications
Item:Specifications
Details:Cylindrical Type Fiber
Product:Reflective type Fiber
Free-cut:Not available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Cylindrical Type Fiber |
| Product | Reflective type Fiber |
| Free-cut | Not available |
| Fiber type | Sleeve type Ultra-small diameter |
| Application | General-purpose |
| Part Number | FD-E23 |
| Sleeve dia. | dia. 0.63 mm |
| With sleeve | Yes |
| Product name | Sleeve Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Not available |
| Sleeve length | 5 mm |
| Beam direction | Top-view |
| Product Number | FD-E23 |
| Fiber head dia. | dia. 3 mm |
| Fiber head length | 15 mm |
| Fiber cable length | 1 m |
| Sensing range（STD） | 55 mm 2.165 in (FX-500 series) |
| Sensing range（FAST） | 30 mm 1.181 in (FX-500 series) |
| Sensing range（H-SP） | 9 mm 0.354 in (FX-500 series) |
| Sensing range（HYPR） | 170 mm 6.693 in (FX-500 series) |
| Sensing range（LONG） | 80 mm 3.150 in (FX-500 series) |
| Sensing range（U-LG） | 120 mm 4.724 in (FX-500 series) |
| Allowable bending radius | R4 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
Product Description
Reflex optical fiber. direct, miniature, cylindrical head (ø3x15mm), with "sleeve" (cannula, ø0,63x5mm), detecc range. 170mm (FX500), radius curvat. 4mm (R4), long. 1m, IP40, temp range. -40/+70ºC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
