UFDAL11

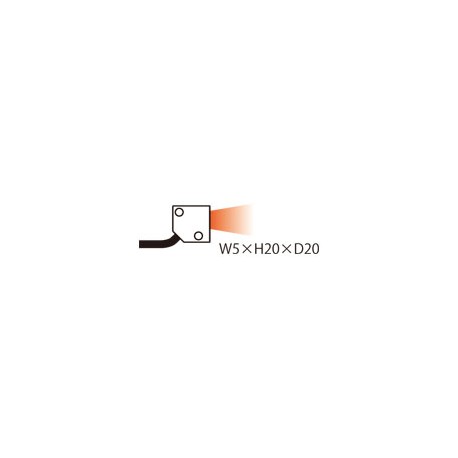

UFDAL11 FD-AL11 PANASONIC Fiber (reflective, array type, 5 x 20 x 20mm, top sensing, bending radius R2, 2m, ..
$0.00USD
4067 in stock
Key Specifications
Item:Specifications
Details:Wide Beam Fiber
Product:Reflective type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Wide Beam Fiber |
| Product | Reflective type Fiber |
| Free-cut | Available |
| Fiber type | Array |
| Application | General-purpose |
| Part Number | FD-AL11 |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Wide Beam Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Not available |
| Beam direction | Wide-area |
| Product Number | FD-AL11 |
| Fiber head length | W5 x H20 x D20 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 320 mm 12.598 in (FX-500 series) |
| Sensing range（FAST） | 180 mm 7.087 in (FX-500 series) |
| Sensing range（H-SP） | 50 mm 1.969 in (FX-500 series) |
| Sensing range（HYPR） | 670 mm 26.378 in (FX-500 series) |
| Sensing range（LONG） | 510 mm 20.079 in (FX-500 series) |
| Sensing range（U-LG） | 530 mm 20.866 in (FX-500 series) |
| Allowable bending radius | R2 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
Product Description
Reflex fiber optics. direct, array type (32 alternating emitter/receiver in 10.85x0.25mm). "Tough" model. Head: 5x20x20mm, detection range. 670mm (FX500), curved radius. 2mm (R2), long. 2m, cuttable,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
