UFD64X

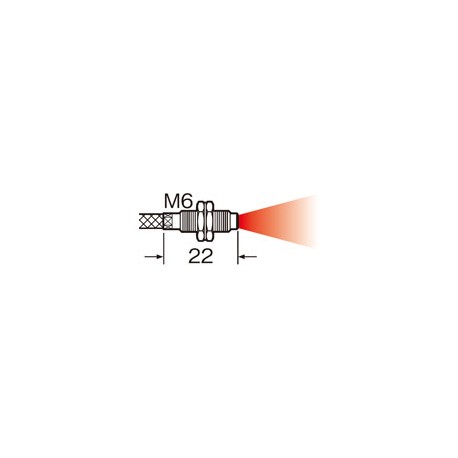

UFD64X FD-64X PANASONIC Fiber (reflective, stainless-jacketed, bending radius R4, M6, 1m, IP40)
$0.00USD
3474 in stock
Key Specifications
Item:Specifications
Details:Threaded Type Fiber
Product:Reflective type Fiber
Free-cut:Not available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Threaded Type Fiber |
| Product | Reflective type Fiber |
| Free-cut | Not available |
| Fiber type | Threaded type Stainless-jacketed |
| Application | General-purpose |
| Part Number | FD-64X |
| With sleeve | No |
| Product name | Threaded Type Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FD-64X |
| Fiber head dia. | M6 |
| Fiber head length | 22 mm |
| Fiber cable length | 1 m |
| Sensing range（STD） | 280 mm 11.024 in (FX-500 series) |
| Sensing range（FAST） | 160 mm 6.299 in (FX-500 series) |
| Sensing range（H-SP） | 50 mm 1.969 in (FX-500 series) |
| Sensing range（HYPR） | 670 mm 26.378 in (FX-500 series) |
| Sensing range（LONG） | 410 mm 16.142 in (FX-500 series) |
| Sensing range（U-LG） | 500 mm 19.685 in (FX-500 series) |
| Allowable bending radius | R4 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Protection | IP40 |
| Beam axis accuracy : Beam axis position | - |
| Beam axis accuracy : Beam axis Inclination | - |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
Product Description
Reflex fiber optics. M6 direct, armoured: stainless steel protection. polyolefin-coated; Curvat radius. 4mm (R4), length.1m, detection. up to 670 mm with FX500 (more with FX551), temp.-55/+80ºC range,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
