UFD40

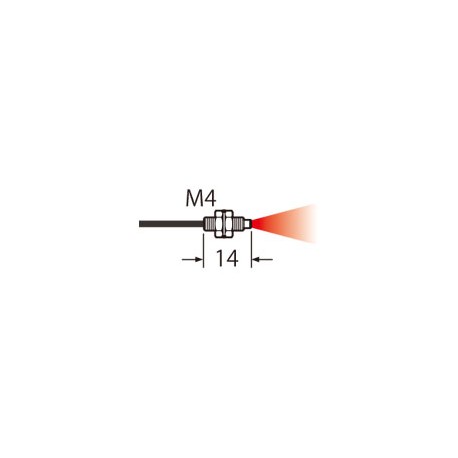

UFD40 FD-40 PANASONIC Fiber, Diffuse reflective, M4, bending radius R4, 2m, IP 67
$0.00USD
3575 in stock
Key Specifications
Item:Specifications
Details:Super Quality Fiber
Product:Reflective type Fiber
Free-cut:Not available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Super Quality Fiber |
| Product | Reflective type Fiber |
| Free-cut | Not available |
| Fiber type | Threaded type |
| Application | General-purpose |
| Part Number | FD-40 |
| With sleeve | No |
| Product name | Super Quality Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FD-40 |
| Fiber head dia. | M4 |
| Fiber head length | 14 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 160 mm 6.299 in (FX-500 series) |
| Sensing range（FAST） | 80 mm 3.150 in (FX-500 series) |
| Sensing range（H-SP） | 25 mm 0.984 in (FX-500 series) |
| Sensing range（HYPR） | 600 mm 23.622 in (FX-500 series) |
| Sensing range（LONG） | 250 mm 9.843 in (FX-500 series) |
| Sensing range（U-LG） | 330 mm 12.992 in (FX-500 series) |
| Allowable bending radius | R2 mm |
| Mounting protective tube | Not available |
| Optical transmission loss | plus or minus 10 % |
| Environmental resistance : Protection | IP67 |
| Beam axis accuracy : Beam axis position | 150 micro m |
| Beam axis accuracy : Beam axis Inclination | plus or minus 3 degrees |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
Product Description
Direct Reflection Fiber Optics, M4, "Super Quality" Series, "Tough" Model, Long. 2m, radius curvature 2mm (R2), detection. up to 600mm with FX500 (more with FX551), temp. range -55/+80ºC, IP67
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
