UFD31W

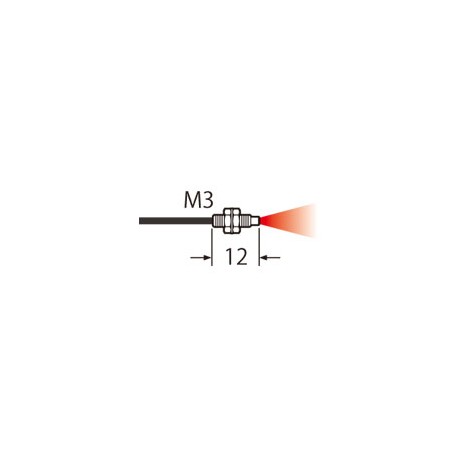

UFD31W FD-31W PANASONIC Fiber (reflective, bending radius R1, M3, 2m, IP67)
$0.00USD
4598 in stock
Key Specifications
Item:Specifications
Details:Threaded Type Fiber
Product:Reflective type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Threaded Type Fiber |
| Product | Reflective type Fiber |
| Free-cut | Available |
| Fiber type | Threaded type |
| Application | General-purpose |
| Part Number | FD-31W |
| With sleeve | No |
| Product name | Threaded Type Fiber |
| Sensing mode | Reflective type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FD-31W |
| Fiber head dia. | M3 |
| Fiber head length | 12 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 80 mm 3.150 in (FX-500 series) |
| Sensing range（FAST） | 45 mm 1.772 in (FX-500 series) |
| Sensing range（H-SP） | 12 mm 0.472 in (FX-500 series) |
| Sensing range（HYPR） | 330 mm 12.992 in (FX-500 series) |
| Sensing range（LONG） | 140 mm 5.512 in (FX-500 series) |
| Sensing range（U-LG） | 180 mm 7.087 in (FX-500 series) |
| Allowable bending radius | R1 mm |
| Mounting protective tube | FTP-N500,FTP-N1000,FTP-N1500 |
| Environmental resistance : Protection | IP67 |
| Beam axis accuracy : Beam axis position | - |
| Beam axis accuracy : Beam axis Inclination | - |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
Product Description
Direct reflection optical fiber, M3, super flexible: bend radius 1mm (R1), length. 2m, cuttable, detection. up to 330mm (with FX500, more with FX551), IP67, temp. range -40/+60ºC
