UEXZ12BP

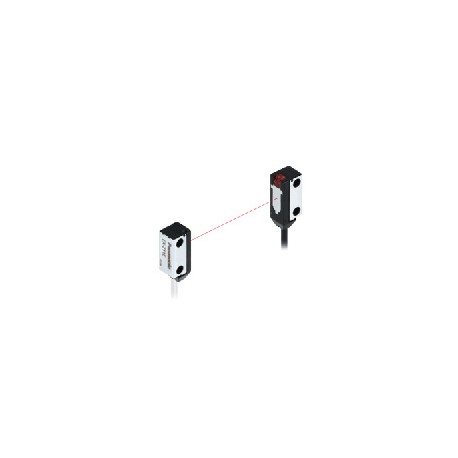

UEXZ12BP EX-Z12B-P PANASONIC Thru beam, 200mm, Side sensing, Dark-ON, PNP, cable 2m
$0.00USD
4848 in stock
Key Specifications
Item:Specifications
Cable:0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlongNote:The bending-resistant cable type has a 0.1 mm23-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable, 2 m6.562 ftlong.
Output:PNP open-collector transistor- Maximum source current: 20 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 1.5 V or less (at 20 mA source current)
Remark:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃73 ℉.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Cable | 0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlongNote:The bending-resistant cable type has a 0.1 mm23-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable, 2 m6.562 ftlong. |
| Output | PNP open-collector transistor- Maximum source current: 20 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 1.5 V or less (at 20 mA source current) |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃73 ℉. |
| Weight | Net weight (each emitter and receiver) : 15 g approx.Gross weight: 35 g approx. |
| Details | Thru-beam [Side sensing] |
| Product | Ultra-minute Photoelectric Sensor |
| Material | Enclosure: PBTLens: PolycarbonateMetallic part: Stainless steel (SUS304)(SUS301 for rear side of front sensing type) |
| Accessory | M2 mounting screws: 1 set (front sensing type: 6 mm0.236 inin length; side sensing type: 10 mm0.394 inin length) |
| Grounding | Floating |
| Protection | IP67 (IEC) |
| Part Number | EX-Z12B-P |
| Product name | Ultra-minute Photoelectric Sensor EX-Z |
| Response time | 0.5 ms or less |
| Sensing range | 200 mm7.874 in |
| Product Number | EX-Z12B-P |
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Cable extension | Extension up to total 50 m164 ftis possible with 0.3 mm2, or more, cable (both emitter and receiver) . |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Emitting element | Red LED (Peak emission wavelength: 650 nm0.026 mil, modulated) |
| Output operation | Dark-ON |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions for three times each |
| Ambient illuminance | Incandescent light: 5,000 ℓx at the light-receiving face |
| Ambient temperature | -10 to +55 ℃14 to +131 ℉(No dew condensation or icing allowed), Storage: -30 to +70 ℃-22 to +158 ℉ |
| Current consumption | Emitter: 10 mA or lessReceiver: 10 mA or less |
| Min. sensing object | ø0.5 mmø0.02 inopaque object (Completely beam interrupted object)(Setting distance between emitter and receiver: 200 mm7.874 in) |
| Operation indicator | Orange LED (Lights up when the sensing output is ON) |
| Stability indicator | Green LED (Lights up under the stable light received condition or the stable dark condition) |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 inamplitude in X, Y and Z directions for two hours each |
| Insulation resistance | 20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Output:Short-circuit protection | Incorporated |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Certification |
| Repeatability(perpendicular to sensing axis) | 0.03 mm0.001 inor less |
Product Description
Ultra-miniature and ultra-compact photoelectric sensor. Barrier, 200mm reach, side detection, dark operation, PNP, 2m cable, dimensions 6.5 x 12 x 5.5
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
