UERX008

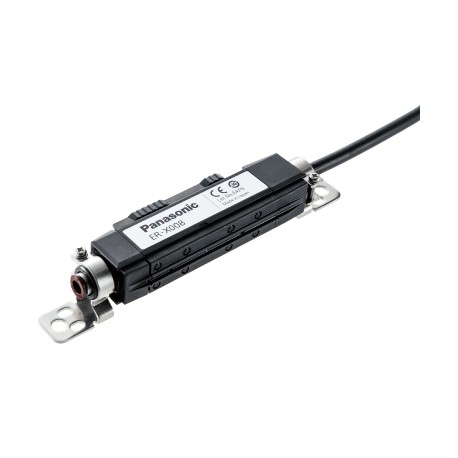

UERX008 ER-X008 PANASONIC Wide-area, high speed ionizer-head, bar type, removal width 80mm, charge removal t..
$0.00USD
4407 in stock
Key Specifications
Item:Specifications
Weight:Net weight : 330 g approx.
Details:Head
Product:Pulse AC Method Area Ionizer
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Weight | Net weight : 330 g approx. |
| Details | Head |
| Product | Pulse AC Method Area Ionizer |
| Material | Main unit enclosure: PPS, Stainless steal (SUS)Head mounting bracket: Stainless steal (SUS)Discharge needle: Tungsten |
| Ion balance | plus or minus 30 V or less(Note： In condition of discharge distance 100 mm 3.937 in, center of the product, discharge wavelength 50 Hz and no air supply.)(Note： Ion balance is average of plus and minus. Also, the specification value is typical value in condition of less than plus or minus 10 degrees ambient temperature change, set the ion balance after 30 minutes of the discharge starting, switching on the ion balance control function.) |
| Part Number | ER-X008 |
| Product name | Pulse AC Method Area Ionizer ER-X |
| Product Number | ER-X008 |
| Ambient humidity | 35 to 65 % RH, Storage: 35 to 85 % RH |
| Applicable fluid | Air (dried clean air)(Note：The dried clean air is dried (dew point: equivalent of -20 degrees ) and filtered (mesh-size: equivalent of 0.01 micro m) air.) |
| Discharge method | Pulse AC method |
| Ozone generation | 0.01 ppm or less |
| Shock resistance | 100 m/s2 acceleration (10 G approx.), in X, Y and Z directions three times each |
| Enclosure earthing | Floating |
| Operating altitude | 2,000 m6561.68 ftor less(Note：Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.) |
| Ambient temperature | 0 to +50 degrees +32 to +122 degrees Fahrenheit (No dew condensation), Storage: -10 to +65 degrees +14 to +149 degrees Fahrenheit |
| Charge removal time | 1 second or less(Note： In condition of discharge distance 100 mm 3.937 in, center of the product, discharge wavelength 50 Hz and no air supply.) |
| Discharge frequency | 50 Hz / 30 Hz / 20 Hz / 10 Hz / 5 Hz / 1 Hz |
| Maximum air pressure | 0.5 MPa |
| Vibration resistance | 10 to 55 Hz frequency, 0.75 mm0.030 indouble amplitude in X, Y and Z directions for two hours each |
| Applicable regulations | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), TÜV SÜD certification (USA, Canada) |
| Discharge output voltage | ±7,000 V approx. |
| Length of high-voltage cable | 0.5 m1.640 ft |
| Effective charge removal width | 80 mm 3.150 in approx. |
Product Description
ER-X ionizer, wide area, high speed, array type, removal area 80mm., charge removal time < 1sec, ion balance max. ± 30V, voltage discharge output approx. 7kV
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
