UDPC101P

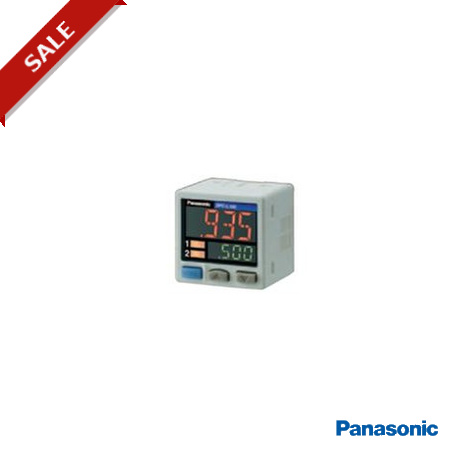

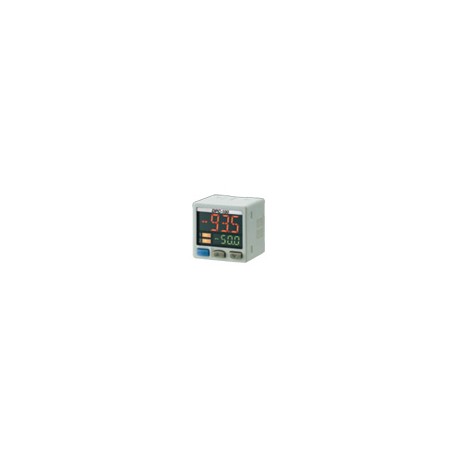

UDPC101P DPC-101-P PANASONIC Controller DPC100, 1-5V, 4-20mA, PNP, cable 2m
$0.00USD
4714 in stock
Key Specifications
Item:Specifications
Remark:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃+68 ℉.The values specified above are applied only to the controller.
Weight:Net weight : 25 g approx. (excluding connector attached cable), Gross weight : 140 g approx.
Details:Controller
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃+68 ℉.The values specified above are applied only to the controller. |
| Weight | Net weight : 25 g approx. (excluding connector attached cable), Gross weight : 140 g approx. |
| Details | Controller |
| Display | 4 digits + 4 digits 3-color LCD display (Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
| Product | Head-separated Dual Display Digital Pressure Sensor [For gas] |
| Material | Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber |
| Protection | IP40 (IEC) |
| Accessories | CN-66A-C2 (Connector attached cable 2 m6.562 ft), Pressure unit label : 1 set |
| Part Number | DPC-101-P |
| Cable length | Total length up to 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
| Product name | Head-separated Dual Display Digital Pressure Sensor [For Gas] DPH-100 / DPC-100 |
| Analog output | <Analog voltage output>・Output current : 1 to 5 V DC・Zero point : within 1 V ± 0.5 % F.S.(vacuum / positive pressure type)within 3 V ± 0.5 % F.S. (compound pressure type)・Span : within 4 V ± 0.5 % F.S.・Linearity : within ±0.1 % F.S.・Output impedance : 1 kΩ approx.<Analog current output>・Output current : 4 to 20 mA・Zero point : within 4 mA ± 1 % F.S.(vacuum / positive pressure type)within 12 mA ± 1.5 % F.S. (compound pressure type)・Span : within 16 mA ± 1.5 % F.S.・Linearity : within ±0.1 % F.S.・Load resistance : 250 Ω (max.). |
| Product Number | DPC-101-P |
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less |
| Ambient humidity | 35 to 85 % RH, Storage : 35 to 85 % RH |
| Shock resistance | 100 m/s2acceleration (10 G approx.) in X, Y and Z directions three times each |
| Type of pressure | Gauge pressure |
| Connecting method | Connector |
| Power consumption | Normal operation : 960 mW or less (Current consumption 40 mA or less at 24 V supply voltage)ECO mode (STD) : 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage)ECO mode (FULL) : 600 mW or less (Current consumption 25 mA or less at 24 V supply voltage)Excluding the current consumption of sensor head and analog output current |
| Comparative output | PNP open-collector transistor (2 outputs)・Maximum source current : 100 mA・Applied voltage : 30 V DC or less(between comparative output and +V)・Residual voltage : 2 V or less (at 100 mA source current) |
| Set pressure range | DPH-101□(Compound pressure) : -199.9 to +199.9 kPa (-1.999 to +1.999 kgf/cm2, -19.98 to +19.98 psi, -1.999 to +1.999 bar, -1510 to +1537 mmHg, -59.4 to +60.5 inHg)DPH-102□(Positive pressure) : -1.050 to +1.050 MPa (-10.71 to +10.71 kgf/cm2, -152.2 to +152.2 psi, -10.50 to +10.50 bar)DPH-103□(Vacuum pressure) : +101.3 to -101.3 kPa (+1.033 to -1.033 kgf/cm2, +14.70 to -14.70 psi, +1.013 to -1.013 bar, +760 to -760 mmHg, +29.9 to -29.9 inHg)(Note) : It changes automatically according to the connected pressure sensor head. |
| Ambient temperature | -10 to +50 ℃+14 to +122 ℉(No dew condensation or icing allowed), Storage : -10 to +60 ℃+14 to +140 ℉ |
| Operation indicator | Orange LED (Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
| Rated pressure range | DPH-101□(Compound pressure): -100.0 to +100.0 kPa,DPH-102□(Positive pressure): 0 to +1.000 MPa,DPH-103□(Vacuum pressure): 0 to -101.0 kPa(Note) : It changes automatically according to the connected pressure sensor head. |
| Vibration resistance | 10 to 500 Hz frequency, double amplitude 3 mm0.118 inor maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each (when panel mounting bracket is mounted : 10 to 150 Hz frequency, double amplitude 0.75 mm0.030 inor maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
| Insulation resistance | 50 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Inputs : Sensor head input | Input voltage range : 1 to 5 V DC (over rated pressure range) |
| Sensor head supply voltage | Same as supply voltage |
| Temperature characteristics | Within ±0.5 % F.S. (ambient temperature range based on +20 ℃+68 ℉) |
| Comparative output:Hysteresis | Minimum 1 digit (variable)(however, 2 digits when using psi unit) |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Comparative output:Output modes | EASY mode / Hysteresis mode / Window comparator mode |
| Comparative output:Repeatability | With vacuum / positive pressure type connected : within ±0.2 % F.S. (±2 digits)With compound pressure type connected : within ±0.2 % F.S. (±4 digits) |
| Comparative output:Response time | 0.5 ms, 1 ms, 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation |
| Display : Displayable pressure range | Vacuum pressure : +5.1 to -101.3 kPa,Positive pressure : -0.050 to +1.020 MPa,Compound pressure : -101.3 to +105.0 kPa |
| Comparative output：Output operation | NO / NC, selectable by key operation |
| Comparative output:Short-circuit protection | Incorporated |
| Inputs : External input (Auto-reference function/Remote zero-adjustment function) | ON voltage : +5 V to +V DCOFF voltage : +0.6 V DC or less, or openInput impedance : 10 kΩ approx.Input time : 1 ms or more |
Product Description
Pressure controller separate sensor head, dual display, 3 colors, connector, PNP
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
