UDP102A

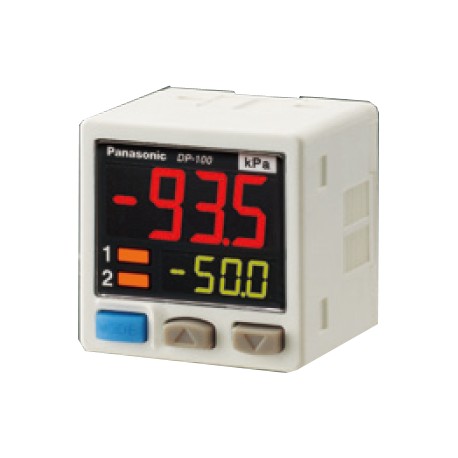

UDP102A DP102A DP-102A PANASONIC Pressure sensor, -1 to 10bar, 0,6 to 5V, NPN, M5 and R(PT)1/8, connector, c..
$0.00USD
3696 in stock
Key Specifications
Item:Specifications
Weight:Net weight: 40 g approx., Gross weight: 130 g approx.
Details:Standard pressure port type
Display:4 digits + 4 digits 3-color LCD display(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation)
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Weight | Net weight: 40 g approx., Gross weight: 130 g approx. |
| Details | Standard pressure port type |
| Display | 4 digits + 4 digits 3-color LCD display(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
| Product | Dual Display Digital Pressure Sensor [For Gas] |
| Material | Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber |
| Indicator | Orange LED(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting) |
| Protection | IP40 (IEC) |
| Accessories | CN-14A-C2 (Connector attached cable 2 m6.562 ft): 1pc. (excluding M8 plug-in connector type) |
| Part Number | DP-102A |
| Cable length | Total length up to 100 m328.084 ft(less than 30 m98.425 ftwhen conforming to CE marking) is possible with 0.3 mm2, or more, cable |
| Product name | Dual Display Digital Pressure Sensor [For Gas] DP-100 |
| Pressure port | M5 female thread + R (PT) 1/8 male thread |
| External input | <NPN output>ON voltage : 0.4 V DC or lessOFF voltage : 5 to 30 V DC, or openInput impedance : 10 kΩ approx.Input time : 1 ms or more |
| Product Number | DP-102A |
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Ambient humidity | 35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH |
| Applicable fluid | Non-corrosive gas |
| Shock resistance | 100 m/s2acceleration (10 G approx.) in X, Y and Z directions three times each |
| Type of pressure | Gauge pressure |
| Connecting method | Connector |
| Power consumption | Normal operation :720 mW or less (Current consumption 30 mA or less at 24 V supply voltage)ECO mode :480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage)360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
| Comparative output | <NPN output>NPN open-collector transistor- Maximum sink current : 100 mA- Applied voltage : 30 V DC or less (between comparative output and 0 V)- Residual voltage : 2 V or less (at 100 mA sink current) |
| Set pressure range | -0.101 to +1.010 MPa-101 to +1,010 kPa-1.03 to +10.30 kgf/cm2-1.01 to +10.10 bar-14.6 to +146.4 psi |
| Ambient temperature | -10 to +50 ℃+14 to +122 ℉, Storage : -10 to +60 ℃+14 to +140 ℉ |
| Rated pressure range | -0.100 to +1.000 MPa |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm0.030 inamplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
| Analog current output | Output current : 2.4 to 20 mAZero point : 4 mA ±5 % F.S.Span : 17.6 mA ±5 % F.S.Linearity : within ±1 % F.S.Load resistance : 250 Ω (max.) |
| Analog voltage output | Output voltage : 0.6 to 5 VZero point : within 1 V ±5 % F.S.Span : within 4.4 V ±5 % F.S.Linearity : within ±1 % F.S.Output impedance : 1 kΩ approx. |
| Insulation resistance | 50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Pressure withstandability | 1.5 MPa |
| Temperature characteristics | Within ±1 % F.S.(at +20 ℃+68 ℉) |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Comparative output : Hysteresis | Minimum 1 digit (variable)(however, 2 digits when using psi unit) |
| Comparative output : Output modes | EASY mode / Hysteresis mode / Window comparator mode |
| Comparative output : Repeatability | ±0.2 % F.S.(within ±2 digits) |
| Comparative output : Response time | 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation |
| Display : Displayable pressure range | -0.101 to +1.010 MPa-101 to +1,010 kPa-1.03 to +10.30 kgf/cm2-1.01 to +10.10 bar-14.6 to +146.4 psi |
| Comparative output : Output operation | NO / NC (selectable by key operation) |
| Comparative output : Short-circuit protection | Incorporated |
Product Description
DP100 series dual digital pressure controller type ASIA, multifunction, -0.1 to 1MPa, NPN
