UDK 4-MTK

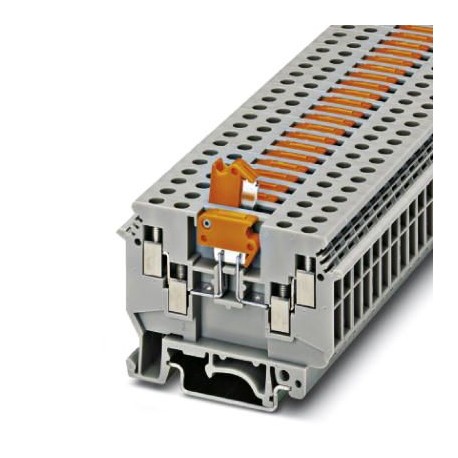

UDK 4-MTK 2775265 PHOENIX CONTACT Knife disconnect terminal block
$0.00USD
3438 in stock
Key Specifications
GTIN:4017918068547
Orderkey:2775265
Packing unit:50 pc
Width (General):6.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918068547 |
| Orderkey | 2775265 |
| Packing unit | 50 pc |
| Width (General) | 6.2 mm |
| Length (General) | 63.5 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 85369010 |
| Height NS 32 (General) | 52 mm |
| Height NS 35/15 (General) | 54.5 mm |
| Screw thread (Dimensions) | M3 |
| Height NS 35/7,5 (General) | 47 mm |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Stripping length (Dimensions) | 8 mm |
| Connection method (Dimensions) | Screw connection |
| Tightening torque max (Dimensions) | 0.8 Nm |
| Tightening torque, min (Dimensions) | 0.6 Nm |
| Weight per Piece (excluding packing) | 16.510 g |
| Open side panel (Key Commercial Data) | Yes |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 16 A |
| Nominal voltage UN (Key Commercial Data) | 630 V (At insulation voltages > 500 V all terminal points must be closed with the appropriate tightening torque.) |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 8 kV |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 4 mm² |
| Number of connections (Key Commercial Data) | 4 |
| Conductor cross section AWG max. (Dimensions) | 10 |
| Conductor cross section AWG min. (Dimensions) | 24 |
| Conductor cross section solid max. (Dimensions) | 6 mm² |
| Conductor cross section solid min. (Dimensions) | 0.2 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 4 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.2 mm² |
| Flammability rating according to UL 94 (Connection data) | V2 |
| Flammability rating according to UL 94 (Key Commercial Data) | V2 |
| 2 conductors with same cross section, solid max. (Dimensions) | 1 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.2 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.25 mm² |
Product Description
Knife-interruptible terminal block with double connection on both sides, cross-section: 0.2 - 2.5 mm², AWG: 30 - 10, width: 6.2 mm, colour: grey
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
