UCX441

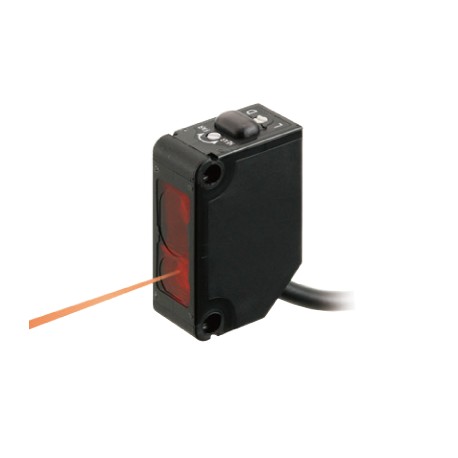

UCX441 CX441 CX-441 PANASONIC Trigonometric diffuse reflective type, 2-50mm, NPN, cable 2m
$0.00USD
4729 in stock
Key Specifications
Item:Specifications
Cable:0.2 mm24-core cabtyre cable, 2 m6.562 ftlong
Output:NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Weight:Net weight: 55 g approx.Gross weight: 65 g approx.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Cable | 0.2 mm24-core cabtyre cable, 2 m6.562 ftlong |
| Output | NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current) |
| Weight | Net weight: 55 g approx.Gross weight: 65 g approx. |
| Details | Adjustable range reflective(Small spot) |
| Product | Compact Photoelectric Sensor |
| Material | Enclosure: PBT (Polybutylene terephthalate)Front cover: PolycarbonateIndicator cover: Polycarbonate |
| Hysteresis | 2 % or less of operation distance(with white non-glossy paper) |
| Protection | IP67 (IEC) |
| Part Number | CX-441 |
| Product name | Compact Photoelectric Sensor CX-400 Ver.2 |
| Sensing mode | BGS / FGS functions switchable with wiring of sensing mode selection input |
| Repeatability | Along sensing axis: 1 mm0.039 inor less, Perpendicular to sensing axis: 0.2 mm0.008 inor less (with white non-glossy paper) |
| Response time | 1 ms or less |
| Spot diameter | Ø2 mmØ0.079 inapprox.(at 50 mm1.969 indistance) |
| Product Number | CX-441 |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
| Adjustable range | 20 to 50 mm0.787 to1.969 in(Note) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can detect an object 2 mm0.079 in[CX-444(-P): 15 mm0.591 in, CX-442(-P): 20 mm0.787 in], or more, away. |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Distance adjuster | 5-turn mechanical adjuster |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Ambient temperature | - 25 to +55℃-13 to +131℃ ℉(No dew condensation or icing allowed ), Storage: -30 to +70℃-22 to +158℃ ℉ |
| Current consumption | 20 mA or less |
| Operation indicator | Orange LED (lights up when the output is ON) |
| Stability indicator | Green LED(lights up under stable operating condition) |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 inamplitude in X, Y and Z directions for two hours each |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Output:Output operation | Switchable either Detection-ON or Detection-OFF |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Emitting element (modulated) | Red LED |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Output:Short-circuit protection | Incorporated |
| Automatic Interference prevention function | Incorporated(Note) Note that detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object. |
| Sensing range(with white non-glossy paper) | 2 to 50 mm0.079 to1.969 in |
| Emitting element (modulated):Peak emission wavelength | 650 nm0.026 mil |
Product Description
Compact photoelectric sensor, direct background suppressive reflection, detection range 2 to 50 mm, BGS and FGS functions, reduced spot (2mm), NPN output, 2m cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
