UCX422Z

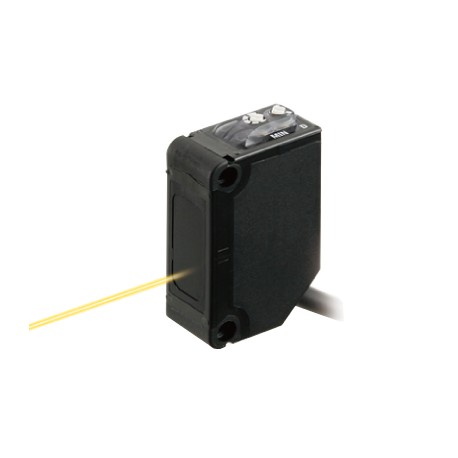

UCX422Z CX422Z CX-422-Z PANASONIC Diffuse reflective type, 80cm, NPN, M8-connector
$0.00USD
3601 in stock
Key Specifications
Item:Specifications
Output:NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Details:Diffuse reflective
Product:Compact Photoelectric Sensor
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Output | NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current) |
| Details | Diffuse reflective |
| Product | Compact Photoelectric Sensor |
| Material | Enclosure: PBT (polybutylene terephthalate)Lens: acrylicIndicator cover: acrylic |
| Accessory | - |
| Hysteresis | 15 % or less of operation distance(Note) The sensing range and hysteresis of the diffuse reflective type sensor are specified for white non-glossy paper (200 × 200 mm7.874 × 7.874 in) as the object. |
| Protection | IP67 (IEC) |
| Part Number | CX-422-Z |
| Product name | Compact Photoelectric Sensor CX-400 Ver.2 |
| Response time | 1 ms or less |
| Sensing range | 800 mm31.496 in(Note) The sensing range and hysteresis of the diffuse reflective type sensor are specified for white non-glossy paper (200 × 200 mm7.874 × 7.874 in) as the object. |
| Product Number | CX-422-Z |
| Sensing object | Opaque, translucent or transparent object(Note) Make sure to confirm detection with an actual sensor before use. |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Power indicator | - |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Ambient temperature | - 25 to +55℃-13 to +131℃ ℉(No dew condensation or icing allowed ), Storage: -30 to +70℃-22 to +158℃ ℉ |
| Current consumption | 15 mA or less |
| Operation indicator | Orange LED(lights up when the output is ON)(incorporated on the receiver for thru-beam type) |
| Stability indicator | Green LED(lights up under stable light received condition or stable dark condition)(incorporated on the receiver for thru-beam type) |
| Sensitivity adjuster | Continuously variable adjuster(incorporated on the receiver for thru-beam type) |
| Vibration resistance | 10 to 500 Hz frequency, 1.5 mm0.059 inamplitude (10 G max.) in X, Y and Z directions for two hours each |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Output:Output operation | Switchable either Light-ON or Dark-ON |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Emitting element (modulated) | Infrared LED |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Output:Short-circuit protection | Incorporated |
| Automatic interference prevention function | Incorporated(Two units of sensors can be mounted close together.) |
| Repeatability(perpendicular to sensing axis) | 1 mm0.039 inor less |
| Emitting element (modulated):Peak emission wavelength | 860 nm0.034 mil |
Product Description
Compact photoelectric sensor, direct reflection 800 mm, NPN, M8 connector
