In Stock Hot Product
UCX412

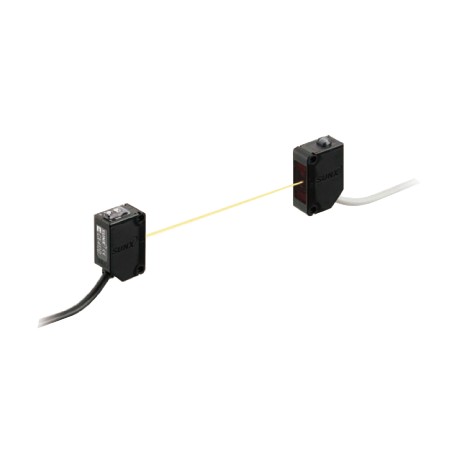

UCX412 CX412 CX-412 PANASONIC Thru-beam, 15m, NPN, cable 2m
$0.00USD
3057 in stock
Key Specifications
Item:Specifications
Cable:0.2 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlong
Output:NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Weight:Net weight: 95 g approx.Gross weight: 100 g approx.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Cable | 0.2 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlong |
| Output | NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current) |
| Weight | Net weight: 95 g approx.Gross weight: 100 g approx. |
| Details | Thru-beam(Long sensing range) |
| Product | Compact Photoelectric Sensor |
| Material | Enclosure: PBT (polybutylene terephthalate)Lens: acrylicIndicator cover: acrylic |
| Accessory | - |
| Hysteresis | - |
| Protection | IP67 (IEC) |
| Part Number | CX-412 |
| Product name | Compact Photoelectric Sensor CX-400 Ver.2 |
| Response time | 1 ms or less |
| Sensing range | 15 m49.213 ft |
| Product Number | CX-412 |
| Sensing object | Ø12 mmØ0.472 inor more opaque object(Note) If slit masks (optional) are fitted, an object of Ø0.5 mm Ø0.020 in(using round slit mask) can be detected. |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable (both emitter and receiver). |
| Power indicator | Green LED(lights up when the power is ON)(incorporated on the emitter) |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Ambient temperature | - 25 to +55℃-13 to +131℃ ℉(No dew condensation or icing allowed ), Storage: -30 to +70℃-22 to +158℃ ℉ |
| Current consumption | Emitter: 20 mA or lessReceiver: 10 mA or less |
| Operation indicator | Orange LED(lights up when the output is ON)(incorporated on the receiver for thru-beam type) |
| Stability indicator | Green LED(lights up under stable light received condition or stable dark condition)(incorporated on the receiver for thru-beam type) |
| Sensitivity adjuster | Continuously variable adjuster(incorporated on the receiver for thru-beam type) |
| Vibration resistance | 10 to 500 Hz frequency, 1.5 mm0.059 inamplitude (10 G max.) in X, Y and Z directions for two hours each |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Output:Output operation | Switchable either Light-ON or Dark-ON |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Emitting element (modulated) | Infrared LED |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Output:Short-circuit protection | Incorporated |
| Automatic interference prevention function | - |
| Repeatability(perpendicular to sensing axis) | 0.5 mm0.020 inor less |
| Emitting element (modulated):Peak emission wavelength | 870 nm0.034 mil |
Product Description
Compact photoelectric sensor, 15 m barrier, NPN, 2m cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
