In Stock Hot Product
UCTU-TM (3,5X7)

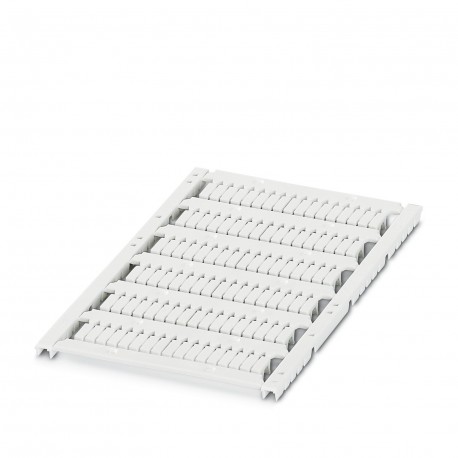

UCTU-TM (3,5X7) 0803666 PHOENIX CONTACT Marker for terminal blocks
$0.00USD
4823 in stock
Key Specifications
:DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Type:high
Color:white (RAL 9010)
Pitch:3.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| DIN EN 62208 (VDE 0660-511):2012-06 (in parts) | |
| Type | high |
| Color | white (RAL 9010) |
| Pitch | 3.5 mm |
| Width | 7 mm |
| Cycles | 2 |
| Height | 3.5 mm |
| Result | Test passed |
| General | Can be labeled via thermal transfer |
| Material | PC |
| Components | free from silicone and halogen |
| Product type | Terminal marking |
| Climate level | AHT 1.0 S |
| Mounting type | latching |
| Specification | ISO 4892-2:2013-03 (following) |
| Test duration | 96 h |
| RoHS compliant | yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Article revision | 01 |
| Text field width | 3.50 mm |
| Text field height | 7.00 mm |
| Area of application | PTIO 1,5/S... terminal block range |
| Identification technology | Thermal transfer for sheets and cards, UV LED technology, direct laser marking |
| Isopropyl[CAS No. 67-63-0] | Test passed |
| n-Hexane[CAS No. 110-54-3] | Test passed |
| Number of individual labels | 102 |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Ambient temperature (operation) | -40 °C ... 120 °C |
| Number of individual labels per row | 17 |
| Flammability rating according to UL 94 | V0 |
| Recommended humidity (storage/transport) | 50 % |
| Water + Petroleum ether[CAS No. 64742-82-1] | Test passed |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Product Description
Specific marking material for PTIO 1.5/S... Terminal series
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
