UCT6R-TM 6

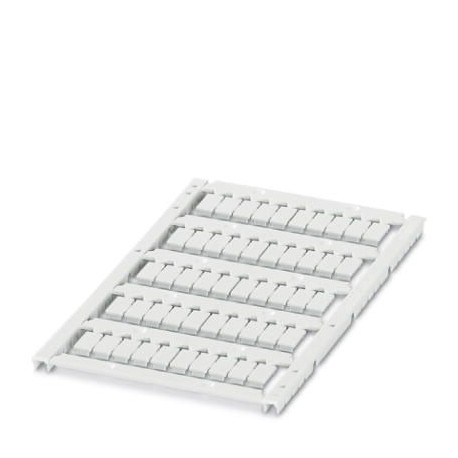

UCT6R-TM 6 0830754 PHOENIX CONTACT Marker for ENTRELEC terminal blocks
$0.00USD
4100 in stock
Key Specifications
GTIN:4046356745604
Orderkey:0830754
Catalog page:Page 174 (C-3-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356745604 |
| Orderkey | 0830754 |
| Catalog page | Page 174 (C-3-2017) |
| Packing unit | 10 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 39269097 |
| Minimum order quantity | 10 pc |
| R22 (Ambient conditions) | HL 1 - HL 3 |
| R23 (Ambient conditions) | HL 1 - HL 3 |
| R24 (Ambient conditions) | HL 1 - HL 3 |
| Note (Ambient conditions) | Can be labeled via thermal transfer |
| Type (Ambient conditions) | high |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | white |
| Result (Ambient conditions) | Test passed |
| Material (Ambient conditions) | PC |
| Components (Ambient conditions) | free from silicone, halogen, and cadmium |
| Width (a) (Key Commercial Data) | 5.45 mm |
| Height (c) (Key Commercial Data) | 2.35 mm |
| Length (b) (Key Commercial Data) | 9.9 mm |
| Test duration (Ambient conditions) | 96 h |
| RoHS compliant (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 9.510 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Marking mounting type (Ambient conditions) | snap into tall marker groove |
| Recommended storage conditions (Dimensions) | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 120 °C |
| Salt spray testing result (Ambient conditions) | Test passed |
| Flammability rating according to UL 94 (General) | V0 |
| Number of individual labels (Ambient conditions) | 50 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Oxygen index (DIN EN ISO 4589-2) (Ambient conditions) | 32.4 % |
| Number of individual labels per row (Ambient conditions) | 10 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (General) | HL 1 - HL 3 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
ENTRELEC terminal marker, Mat, white, unlabeled, labelable with: THERMOMARK CARD, THERMOMARK CARD 2.0, THERMOMARK PRIME, BLUEMARKID, BLUEMARKIDCOLOR, TOPMARK LASER, TOPMARKNEO, mounting class: interlo
