UCT2-TM 5/6 CUS

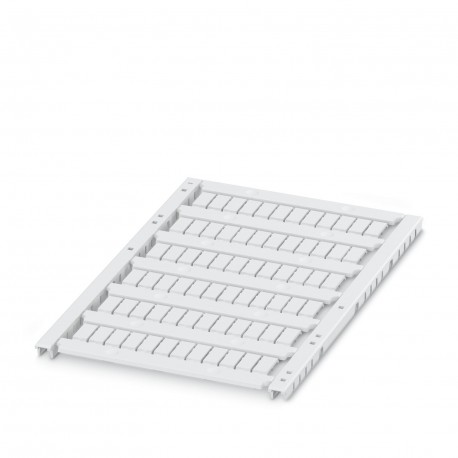

UCT2-TM 5/6 CUS 0829250 PHOENIX CONTACT Marker for terminal blocks
$0.00USD
3057 in stock
Key Specifications
Type:high
Color:white (RAL 9010)
Pitch:5.2 mm
Width:4.35 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | high |
| Color | white (RAL 9010) |
| Pitch | 5.2 mm |
| Width | 4.35 mm |
| Height | 2.65 mm |
| Length | 10.2 mm |
| Result | Test passed |
| General | Can be labeled via thermal transfer |
| Material | PC |
| Components | free from silicone and halogen |
| Product type | Labeled terminal marker |
| Mounting type | snap into tall marker groove |
| Specification | ISO 4892-2:2013-03 (following) |
| Test duration | 96 h |
| RoHS compliant | yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Article revision | 01 |
| Identification technology | Thermal transfer for sheets and cards, UV LED technology, direct laser marking |
| Number of individual labels | 72 |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Ambient temperature (operation) | -40 °C ... 120 °C |
| Number of individual labels per row | 12 |
| Flammability rating according to UL 94 | V0 |
| Recommended humidity (storage/transport) | 50 % |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Product Description
Terminal marker, available: by mats, white, labeled according to customer's instructions, mounting class: fit in groove for high index, for terminal width: 5.2 mm, usable area: 4.2 x 8.4 mm, Number of
