UCT-TMF 8 OG CUS

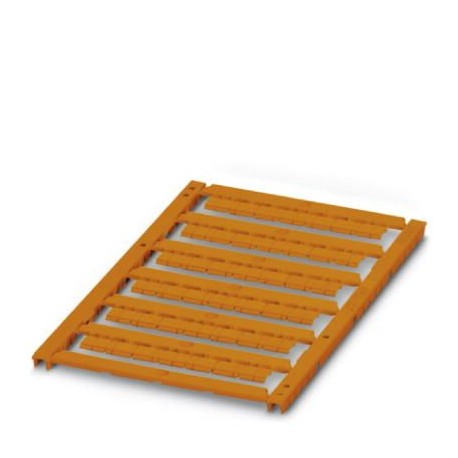

UCT-TMF 8 OG CUS 0829674 PHOENIX CONTACT Marker for terminal blocks
$0.00USD
4465 in stock
Key Specifications
GTIN:4046356598279
Note:Made to Order (non-returnable)
Orderkey:0829674
Catalog page:Page 88 (C-5-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356598279 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0829674 |
| Catalog page | Page 88 (C-5-2013) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 49119900 |
| (Ambient conditions) | 5146662 BLUEMARK CLED-FLUID-CARTR. |
| R22 (Ambient conditions) | HL 1 - HL 3 |
| R23 (Ambient conditions) | HL 1 - HL 3 |
| R24 (Ambient conditions) | HL 1 - HL 3 |
| Type (Ambient conditions) | flat |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | orange |
| Device (Ambient conditions) | 5146464 THERMOMARK CARD |
| Result (Ambient conditions) | Test passed |
| Material (Ambient conditions) | PC |
| Components (Ambient conditions) | free from silicone and halogen |
| Ink ribbon (Ambient conditions) | 0801371 THERMOMARK-RIBBON 110-TC |
| Width (a) (Key Commercial Data) | 7.6 mm |
| Height (c) (Key Commercial Data) | 1.64 mm |
| Length (b) (Key Commercial Data) | 5 mm |
| Printability (Ambient conditions) | Thermal transfer |
| Test duration (Ambient conditions) | 96 h |
| RoHS compliant (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 9.000 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Marking mounting type (Ambient conditions) | snap into flat marker groove |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 120 °C |
| Salt spray testing result (Ambient conditions) | Test passed |
| Flammability rating according to UL 94 (General) | V0 |
| Number of individual labels (Ambient conditions) | 42 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Oxygen index (DIN EN ISO 4589-2) (Ambient conditions) | 32.4 % |
| Number of individual labels per row (Ambient conditions) | 7 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (General) | HL 1 - HL 3 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Terminal marker, available: by mats, orange, labeled according to customer's instructions, mounting class: fit in flat index groove, for terminal width: 8.2 mm, usable area: 7.4 x 4.7 mm, Number of in
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
