UCT-PMLP (90X38)

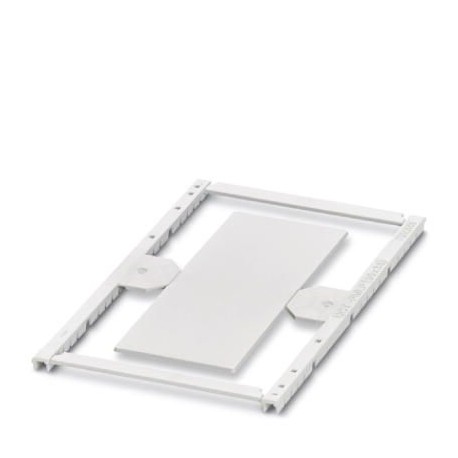

UCT-PMLP (90X38) 0803041 PHOENIX CONTACT Plastic label
$0.00USD
3668 in stock
Key Specifications
GTIN:4046356908108
Note:Made to Order (non-returnable)
Orderkey:0803041
Catalog page:Page 286 (NTK-2014)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356908108 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0803041 |
| Catalog page | Page 286 (NTK-2014) |
| Packing unit | 10 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 49119900 |
| Minimum order quantity | 10 pc |
| R22 (Ambient conditions) | HL 1 - HL 3 |
| R23 (Ambient conditions) | HL 1 - HL 3 |
| R24 (Ambient conditions) | HL 1 - HL 3 |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | white |
| Device (Ambient conditions) | 0831831 TOPMARK LASER |
| Result (Ambient conditions) | Test passed |
| Adhesive (Ambient conditions) | Acrylic |
| Material (Ambient conditions) | PC |
| Components (Ambient conditions) | free from silicone and halogen |
| Width (a) (Key Commercial Data) | 90 mm |
| Length (b) (Key Commercial Data) | 38 mm |
| Printability (Ambient conditions) | Direct laser marking |
| Test duration (Ambient conditions) | 96 h |
| RoHS compliant (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 11.850 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Adhesive strength (Ambient conditions) | 250 µm |
| Marking mounting type (Ambient conditions) | adhesive |
| Recommended storage conditions (Dimensions) | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 120 °C |
| Salt spray testing result (Ambient conditions) | Test passed |
| Flammability rating according to UL 94 (General) | V0 |
| Number of individual labels (Ambient conditions) | 1 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Oxygen index (DIN EN ISO 4589-2) (Ambient conditions) | 32.4 % |
| Number of individual labels per row (Ambient conditions) | 1 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (General) | HL 1 - HL 3 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | IEC 61010-1:2010-06 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Plastic sign, Mat, white, unlabeled, labelable with: TOPMARKNEO, TOPMARK LASER, BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, mounting class: glued, useful surface: 90 x 38mm, Number of individual index
