UCT-EM (17X8)

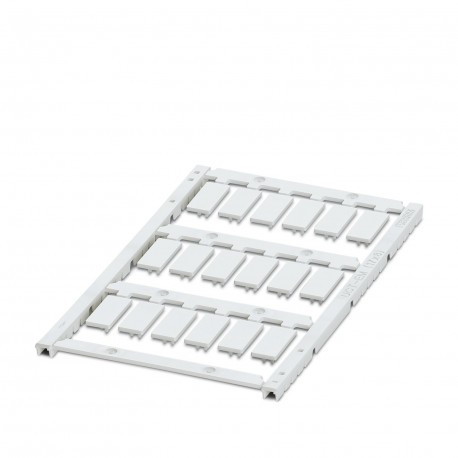

UCT-EM (17X8) 0801842 PHOENIX CONTACT Snap-in markers
$0.00USD
3083 in stock
Key Specifications
:DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Color:white (RAL 9010)
Width:17 mm
Cycles:2
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| DIN EN 62208 (VDE 0660-511):2012-06 (in parts) | |
| Color | white (RAL 9010) |
| Width | 17 mm |
| Cycles | 2 |
| Length | 8 mm |
| Result | Test passed |
| Material | PC |
| Components | free from silicone, halogen, and cadmium |
| Product type | Device marking |
| Climate level | AHT 1.0 S |
| Mounting type | latching |
| Specification | ISO 4892-2:2013-03 (following) |
| Test duration | 96 h |
| RoHS compliant | yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Article revision | 03 |
| Text field width | 17.00 mm |
| Text field height | 8.00 mm |
| Identification technology | Thermal transfer for sheets and cards, UV LED technology, direct laser marking |
| Isopropyl[CAS No. 67-63-0] | Test passed |
| n-Hexane[CAS No. 110-54-3] | Test passed |
| Number of individual labels | 18 |
| Ambient temperature (operation) | -40 °C ... 120 °C |
| Number of individual labels per row | 6 |
| Flammability rating according to UL 94 | V0 |
| Recommended humidity (storage/transport) | 50 % |
| Water + Petroleum ether[CAS No. 64742-82-1] | Test passed |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Product Description
Fitting label, Mat, white, unlabeled, labelable with: TOPMARKNEO, TOPMARK LASER, BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting class: int
