In Stock Hot Product
UCT-EM (17X8) CUS

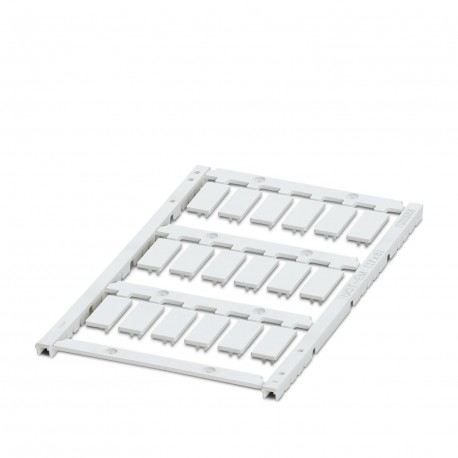

UCT-EM (17X8) CUS 1014400 PHOENIX CONTACT Snap-in markers
$0.00USD
3554 in stock
Key Specifications
Color:white (RAL 9010)
Width:17 mm
Length:8 mm
Result:Test passed
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | white (RAL 9010) |
| Width | 17 mm |
| Length | 8 mm |
| Result | Test passed |
| Material | PC |
| Components | free from silicone, halogen, and cadmium |
| Product type | Labeled device marker |
| Mounting type | snapped into marker carrier |
| Specification | ISO 4892-2:2013-03 (following) |
| Test duration | 96 h |
| RoHS compliant | yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Article revision | 01 |
| Number of individual labels | 18 |
| Ambient temperature (operation) | -40 °C ... 120 °C |
| Number of individual labels per row | 6 |
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Product Description
Fitting label, available: by mats, white, labelled according to customer specifications, mounting type: fit on signage support, useful surface: 17x8mm, Number of individual indexes: 18
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
