UCS PED 5018

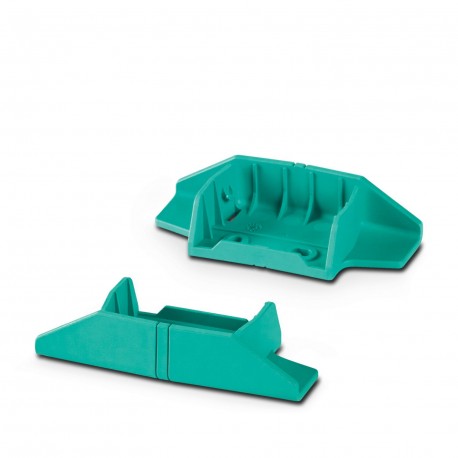

UCS PED 5018 2203394 PHOENIX CONTACT Stand for mounting the UCS housing, height: 47 mm material: polyamide c..
$0.00USD
3833 in stock
Key Specifications
Depth:19.2 mm
Width:90 mm
Height:37.5 mm
General:The UCS PED... stand has drill holes that are also suitable for wall mounting.Recommended screws for wall mounting: S5 dowel, screw ø 4.0 mm.
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Depth | 19.2 mm |
| Width | 90 mm |
| Height | 37.5 mm |
| General | The UCS PED... stand has drill holes that are also suitable for wall mounting.Recommended screws for wall mounting: S5 dowel, screw ø 4.0 mm. |
| Housing type | Universal housings |
| Product type | Mounting material |
| Assembly note | Refer to the data sheet for the range in the download area. |
| Mounting type | Snap in |
| Housing series | UCS |
| Color (Housing) | turquoise green (RAL 5018) |
| Article revision | 02 |
| Housing material | Polyamide |
| Mounting position | Wall mounting |
| Type of packaging | PE bag |
| Insulating material | PA |
| Diameter mounting hole | 4 mm |
| Max. IP code to attain | IP40 |
| Surface characteristics | untreated |
| CTI according to IEC 60112 | 600 |
| Ventilation openings present | no |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 80 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
Product Description
Foot for placing UCS housings, height: 47 mm, material: polyamide, color: turquoise, similar to RAL 5018, integrated wall mounting option, fits into the threaded holes of the case
