UCS CCD 5015

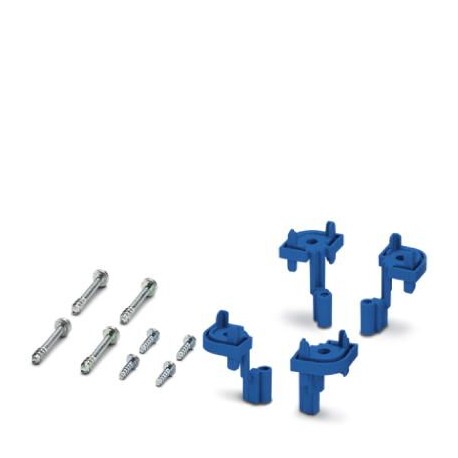

UCS CCD 5015 1056065 PHOENIX CONTACT Corner inlay for UCS housings with integrated screw boss material: poly..
$0.00USD
3479 in stock
Key Specifications
GTIN:4055626695006
Orderkey:1056065
Packing unit:1
ETIM 5.0 (eCl@ss):EC001031
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626695006 |
| Orderkey | 1056065 |
| Packing unit | 1 |
| ETIM 5.0 (eCl@ss) | EC001031 |
| ETIM 6.0 (eCl@ss) | EC001031 |
| ETIM 7.0 (eCl@ss) | EC001031 |
| Custom tariff number | 39269097 |
| Color (RAL) (Measurements) | sky blue (5015) |
| Type (Key Commercial Data) | Including flat screws and screws for PCB mounting |
| eCl@ss 5.1 (Classifications) | 27180506 |
| eCl@ss 6.0 (Classifications) | 27180800 |
| eCl@ss 7.0 (Classifications) | 27182702 |
| eCl@ss 8.0 (Classifications) | 27182702 |
| eCl@ss 9.0 (Classifications) | 27182702 |
| Depth [ d ] (Item properties) | 27.05 mm |
| Width [ w ] (Item properties) | 16.2 mm |
| Height [ h ] (Item properties) | 16.2 mm |
| Housing material (Measurements) | PA |
| Order No. (Key Commercial Data) | 1056065 |
| Drive form screw head (PCB data) | Mounting the PCB: Slotted Torx®(T7) |
| Housing type (Key Commercial Data) | Universal housings |
| Insulating material (Measurements) | PA |
| PCB thickness (Ambient conditions) | 0.8 mm ... 3 mm |
| Pieces per package (Note on mounting) | 1 |
| Type of PCB mount (Ambient conditions) | Bolt mounting |
| Note on PCB holders (Ambient conditions) | This product is prepared for a printed-circuit board. Additional printed-circuit boards can be mounted using adhesive pads (accessories). |
| Denomination packing units (Note on mounting) | Pcs. |
| Flammability rating according to UL 94 (Measurements) | V0 |
| Flammability rating according to UL 94 (Packaging information) | V0 |
| Ambient temperature (storage/transport) (Material specifications) | -40 °C ... 55 °C |
Product Description
Angular inserts for UCS housings with integrated threaded mandrel; Material: Polyamide; Color: Sky Blue, similar to RAL 5015
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
