UCP430

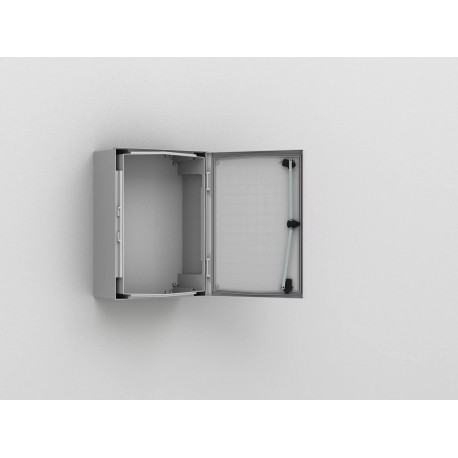

UCP430 ELDON Wall mounted, 415x315x170
$0.00USD
4772 in stock
Key Specifications
EAN:8713574099968
UPC:783510530037
Color:Light Gray
Depth:170 mm
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 8713574099968 |
| UPC | 783510530037 |
| Color | Light Gray |
| Depth | 170 mm |
| Width | 315 mm |
| Finish | Smooth |
| Height | 415 mm |
| Weight | 3.9 kg |
| Material | Polyester |
| Door Type | Plain |
| Color Code | RAL 7035 |
| Feature Name | Feature Value |
| Body Thickness | 3 mm |
| Latch Quantity | 1 |
| Depth (EF000049) | 170.00 mm |
| Packing Quantity | 1.0000 |
| Width (EF000008) | 315.00 mm |
| Colour (EF000007) | Grey |
| Height (EF000040) | 415.00 mm |
| Material (EF002169) | Plastic |
| Couplable (EF001229) | |
| Atributo del producto | Valor |
| RAL-number (EF000116) | 7.04 |
| EMC-version (EF001062) | false |
| Corner model (EF020814) | |
| Freestanding (EF020363) | |
| Pitched roof (EF009278) | false |
| Pole fastening (EF009582) | false |
| With rear door (EF007381) | false |
| Impact strength (EF004293) | IK07 |
| Number of doors (EF000122) | 1.00 |
| Number of locks (EF000123) | 1.00 |
| Material quality (EF001257) | Polyester |
| Standard Packaging Quantity | 1.0000 |
| With glazed door (EF001089) | false |
| Surface finishing (EF006569) | Untreated |
| With mounting plate (EF000118) | false |
| Intermediate mounting (EF022994) | |
| With ventilation door (EF006279) | false |
| Degree of protection (IP) (EF005474) | IP66 |
| Floor standing wall model (EF015208) | |
| Suitable for wall built-in (EF007536) | |
| Suitable for wall mounting (EF000664) | |
| Degree of protection (NEMA) (EF011959) | 4X |
| Suitable for metrical mounting (EF005823) | |
| Mounting plate depth-adjustable (EF006054) | |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | None N |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | None N |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | None W |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | None N |
Product Description
Mural, 415x315x170, compact, 1-door, no MP, polyester, IP66
