UC-WMC 1,9 (30X4) CUS

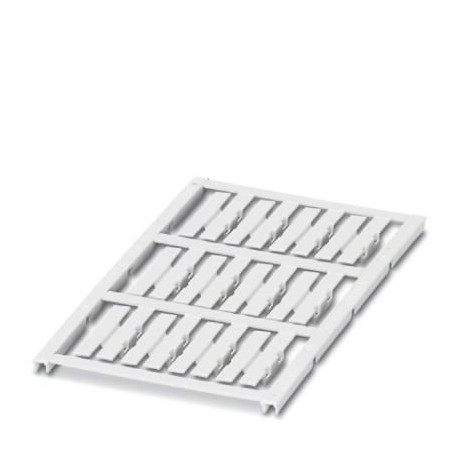

UC-WMC 1,9 (30X4) CUS 0830284 PHOENIX CONTACT Conductor marker
$0.00USD
3602 in stock
Key Specifications
GTIN:4046356649810
Note:Made to Order (non-returnable)
Orderkey:0830284
Catalog page:Page 163 (C-5-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356649810 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0830284 |
| Catalog page | Page 163 (C-5-2013) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 49119900 |
| R22 (Ambient conditions) | HL 1 - HL 2 |
| R23 (Ambient conditions) | HL 1 - HL 2 |
| R24 (Ambient conditions) | HL 1 - HL 2 |
| Type (Ambient conditions) | Card form |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | white |
| Result (Ambient conditions) | Test passed |
| Class F (Ambient conditions) | 2 |
| Class I (Ambient conditions) | 3 |
| Material (Ambient conditions) | PA |
| Components (Ambient conditions) | free from silicone and halogen |
| Width (a) (Key Commercial Data) | 4 mm |
| Length (b) (Key Commercial Data) | 30 mm |
| Test duration (Ambient conditions) | 96 h |
| RoHS compliant (Ambient conditions) | Yes |
| Cable diameter (Key Commercial Data) | 1.2 mm ... 1.9 mm |
| Weight per Piece (excluding packing) | 10.750 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Marking mounting type (Ambient conditions) | clip on |
| Recommended storage conditions (Dimensions) | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 120 °C |
| Salt spray testing result (Ambient conditions) | Test passed |
| Flammability rating according to UL 94 (General) | V2 |
| Number of individual labels (Ambient conditions) | 12 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Oxygen index (DIN EN ISO 4589-2) (Ambient conditions) | 28,2% |
| Number of individual labels per row (Ambient conditions) | 4 |
| Flammability rating according to UL 94 (Ambient conditions) | V2 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (General) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (General) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (General) | HL 1 - HL 2 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Conductor marker, available: by mats, white, labeled according to customer's instructions, mounting class: hook, cable diameter range: 1.2 ... 1.9 mm, usable surface: 30 x 4 mm, Number of individual i
