In Stock Hot Product
UC-TM 4

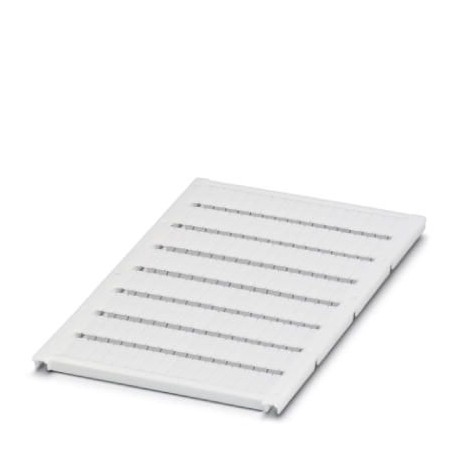

UC-TM 4 0818111 PHOENIX CONTACT Marker for terminal blocks
$0.00USD
3019 in stock
Key Specifications
GTIN:4046356133999
Orderkey:0818111
Catalog page:Page 118 (C-3-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356133999 |
| Orderkey | 0818111 |
| Catalog page | Page 118 (C-3-2017) |
| Packing unit | 10 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 39269097 |
| Minimum order quantity | 10 pc |
| R22 (Ambient conditions) | HL 1 - HL 2 |
| R23 (Ambient conditions) | HL 1 - HL 2 |
| R24 (Ambient conditions) | HL 1 - HL 2 |
| Note (Ambient conditions) | Can be labeled with CMS |
| Type (Ambient conditions) | high |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | white |
| Device (Ambient conditions) | 5147999 BLUEMARK CLED |
| Result (Ambient conditions) | Test passed |
| Class F (Ambient conditions) | 2 |
| Class I (Ambient conditions) | 3 |
| Material (Ambient conditions) | PA |
| Components (Ambient conditions) | free from silicone and halogen |
| Width (a) (Key Commercial Data) | 4 mm |
| Printability (Ambient conditions) | UV LED technology |
| Test duration (Ambient conditions) | 96 h |
| RoHS compliant (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 10.950 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Marking mounting type (Ambient conditions) | snap into tall marker groove |
| Recommended storage conditions (Dimensions) | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 120 °C |
| Salt spray testing result (Ambient conditions) | Test passed |
| Flammability rating according to UL 94 (General) | V2 |
| Number of individual labels (Ambient conditions) | 120 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Oxygen index (DIN EN ISO 4589-2) (Ambient conditions) | 28,2% |
| Number of individual labels per row (Ambient conditions) | 15 |
| Flammability rating according to UL 94 (Ambient conditions) | V2 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (General) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (General) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (General) | HL 1 - HL 2 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Marker for terminals, Mat, white, unlabeled, labelable with: BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting class: interlock, for terminal width: 4.2 mm, useful surface
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
