UC-17S1N8AT0DU

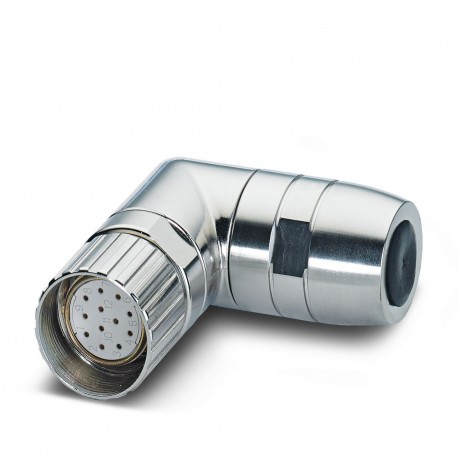

UC-17S1N8AT0DU 1606605 PHOENIX CONTACT Cable connector
$0.00USD
4902 in stock
Key Specifications
:74 V DC
Note:Order information: Order crimp contacts Ø 1 mm separately
Coding:N
Application:Signal
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 74 V DC | |
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Coding | N |
| Application | Signal |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 48 V AC |
| Type of locking | Screw locking mechanism |
| Housing material | Metal |
| Connection method | Crimp connection |
| Connection profile | 17 |
| Order information: | Order crimp contacts Ø 1 mm separately |
| Degree of pollution | 3 |
| Number of positions | 17 |
| Pg screw connection | none |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Socket |
| Rated currentPower contacts | 8 A |
| Contact diameterPower contacts | 1 mm |
| Degree of protection (plugged in) | IP67 |
| Ambient temperature (storage/transport) | 15 °C ... 25 °C |
| Permissible humidity (storage/transport) | 50 % ... 65 % |
Product Description
M23, Plug connector. for cables, UC, angled, shielded: yes, Screw lock, No. of poles: 17, Direction of rotation: Standard, contact type: Female, Crimped connection, coding:N, Alternative product accor
