UC-17S1N8ARNABX

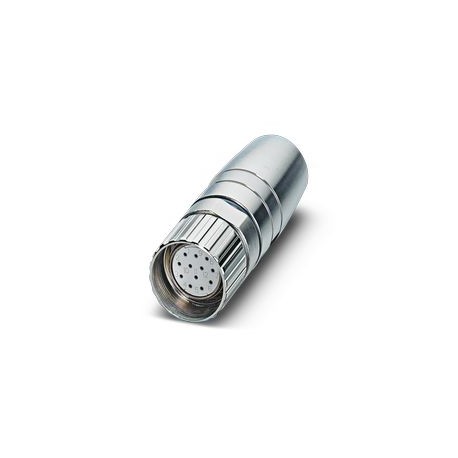

UC-17S1N8ARNABX 1245371 PHOENIX CONTACT M23, Cable connector, series: UC, straight, shielded: yes, Screw loc..
$0.00USD
4693 in stock
Key Specifications
:74 V DC
Note:Order information: Order crimp contacts Ø 1 mm separately
Coding:N
Application:Signal
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 74 V DC | |
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Coding | N |
| Application | Signal |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 48 V AC |
| Seal material | FPM |
| Type of locking | Screw locking mechanism |
| Housing material | Metal |
| Connection method | Crimp connection |
| Connection profile | 17 |
| Order information: | Order contact inserts separately |
| Degree of pollution | 3 |
| Number of positions | 17 |
| Pg screw connection | Pg16 |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Socket |
| External cable diameter | 9.5 mm ... 11.5 mm |
| Rated currentPower contacts | 8 A |
| Contact diameterPower contacts | 1 mm |
| Degree of protection (plugged in) | IP67 |
Product Description
Cable connector
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
