In Stock Hot Product
UC-0000000FNDU

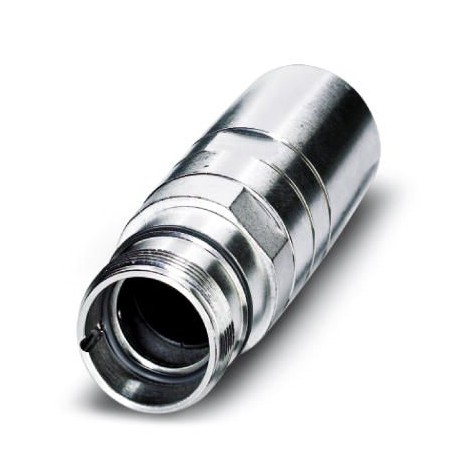

UC-0000000FNDU 1606046 PHOENIX CONTACT Sleeve housing for coupler connector
$0.00USD
3488 in stock
Key Specifications
GTIN:4046356256940
Note:Made to Order (non-returnable)
Orderkey:1606046
Packing unit:20 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356256940 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1606046 |
| Packing unit | 20 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85389099 |
| Ambient temperature (General) | -20 °C ... 125 °C |
| Degree of protection (General) | IP67 |
| Installation height max. (Material) | 2000 m |
| Weight per Piece (excluding packing) | 106.260 g |
| Conductor entry (Key Commercial Data) | 6.5 mm ... 14.5 mm |
| Housing material (Ambient conditions) | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Type of locking (Key Commercial Data) | Screw locking |
| Type of contacts (Key Commercial Data) | Socket |
| Contact connection method (Key Commercial Data) | Crimp connection |
| Gasket and O-ring material (Ambient conditions) | FPM |
| (Specifications according to DIN EN 61984:2001) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Pg housing screw connection (Key Commercial Data) | Pg16 |
| China RoHS (Specifications according to DIN EN 61984:2001) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Specifications according to DIN EN 61984:2001) | Lead 7439-92-1 |
Product Description
Aerial housing for plug-in coupling connector, straight, Screw lock, M23, shielded: yes, cable diameter range: 6.5 mm ... 14.5 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
