TW 95/ 3-CL

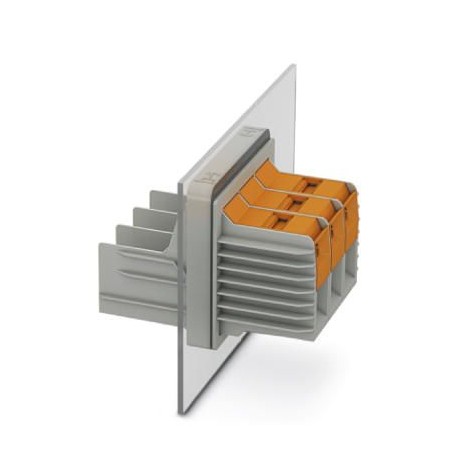

TW 95/ 3-CL 1708754 PHOENIX CONTACT Panel feed-through terminal block
$0.00USD
4087 in stock
Key Specifications
GTIN:4055626020396
Note:Made to Order (non-returnable)
Orderkey:1708754
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626020396 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1708754 |
| Packing unit | 5 pc |
| Pitch (General) | 25 mm |
| Width (General) | 97 mm |
| Length (General) | 120.05 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 5 pc |
| Plate thickness (General) | 1 mm ... 5 mm |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Connection side (Dimensions) | inside |
| Stripping length (Dimensions) | 25 mm |
| Connection method (Dimensions) | Cable lug connection |
| Tightening torque max (Dimensions) | 15 Nm |
| Tightening torque, min (Dimensions) | 12 Nm |
| Weight per Piece (excluding packing) | 679.000 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 232 A |
| Nominal voltage UN (Key Commercial Data) | 1000 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 3 |
| Maximum load current (Key Commercial Data) | 232 A |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 95 mm² |
| Number of connections (Key Commercial Data) | 3 |
| Conductor cross section AWG max. (Dimensions) | 3/0 |
| Conductor cross section AWG min. (Dimensions) | 4 |
| Conductor cross section solid max. (Dimensions) | 95 mm² |
| Conductor cross section solid min. (Dimensions) | 25 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 95 mm² |
| Conductor cross section flexible min. (Dimensions) | 25 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-1 |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 95 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 95 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 25 mm² |
Product Description
Terminal block, connection type: T-LOX articulated lever connection, Terminal connection, number of poles: 3, charging current: 232 A, conductor connection direction with respect to the plug direction
