TW 50/ 3-CL

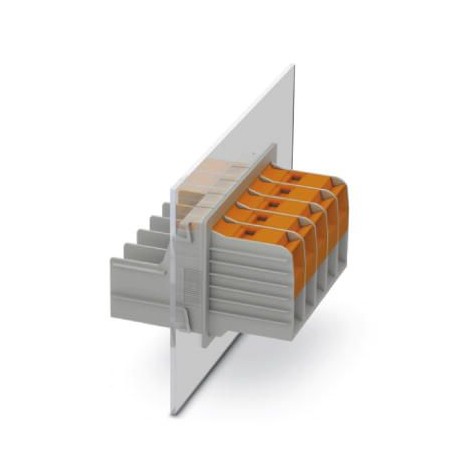

TW 50/ 3-CL 1708746 PHOENIX CONTACT Panel feed-through terminal block
$0.00USD
3018 in stock
Key Specifications
GTIN:4055626020334
Note:Made to Order (non-returnable)
Orderkey:1708746
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626020334 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1708746 |
| Packing unit | 5 pc |
| Pitch (General) | 20 mm |
| Width (General) | 78 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 5 pc |
| Plate thickness (General) | 1 mm ... 5 mm |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Connection side (Dimensions) | inside |
| Connection method (Dimensions) | Cable lug connection |
| Weight per Piece (excluding packing) | 410.000 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 150 A |
| Nominal voltage UN (Key Commercial Data) | 1000 V |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 3 |
| Maximum load current (Key Commercial Data) | 150 A |
| Nominal cross section (Key Commercial Data) | 50 mm² |
| Number of connections (Key Commercial Data) | 2 |
| Conductor cross section solid max. (Dimensions) | 50 mm² |
| Conductor cross section solid min. (Dimensions) | 10 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 50 mm² |
| Conductor cross section flexible min. (Dimensions) | 16 mm² |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 50 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 10 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 50 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 16 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 6 mm² |
Product Description
Terminal block, connection type: T-LOX articulated lever connection, Terminal connection, number of poles: 3, load current: 150 A, cross-section: 10 mm² - 50 mm², conductor connection direction with r
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
