TSDW1COA-1

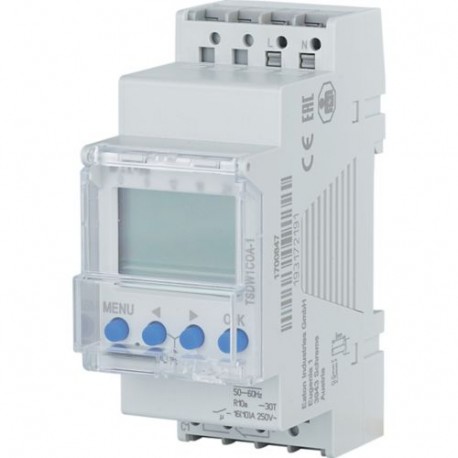

TSDW1COA-1 196850 Y7-196850 EATON ELECTRIC Digital Astronomical Timeswitch, DIN rail 2 TE, weekly program, 1..
$0.00USD
4457 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):69.2 mm
Width (EF000008):35.8 mm
Height (EF000040):90.1 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 69.2 mm |
| Width (EF000008) | 35.8 mm |
| Height (EF000040) | 90.1 mm |
| Hour meter (EF004533) | No |
| 24 h program (EF002965) | Yes |
| Contact type (EF001587) | Change-over contact (NO/NC) |
| Astro program (EF000224) | Yes |
| Cycle program (EF002971) | No |
| Output signal (EF000506) | Other |
| 60 min program (EF002964) | No |
| Annual program (EF001185) | No |
| Random program (EF002969) | No |
| Supply voltage (EF004127) | 230 V |
| Weekly program (EF001184) | Yes |
| Holiday program (EF002968) | Yes |
| Impulse program (EF002970) | No |
| Mounting method (EF000003) | DIN rail |
| Accuracy per day (EF006325) | 1 s |
| Radio-controlled (EF000888) | No |
| With memory card (EF009768) | No |
| Autonomy in hours (EF004721) | 0 |
| Autonomy in years (EF004720) | 10 |
| Mains synchronous (EF002973) | No |
| Quartz controlled (EF002974) | Yes |
| Number of channels (EF000259) | 1 |
| Number of contacts (EF000146) | 1 |
| External programming (EF003846) | Yes |
| Switching preselection (EF002979) | Yes |
| Frequency supply voltage (EF004687) | 50 Hz |
| Max. switching power LED (EF015953) | 600 W |
| Radio-controlled (DCF77) (EF003850) | No |
| Text guidance in display (EF005341) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| External push button input (EF007754) | No |
| Number of memory locations (EF000203) | 56 |
| Potential free switch contact (EF003626) | Yes |
| Suitable for manual operation (EF002978) | Yes |
| Voltage type (supply voltage) (EF002991) | AC |
| GPS (global positioning system) (EF002753) | No |
| Width in number of modular spacings (EF002950) | 2 |
| Nominal switching current at 250 V AC (EF005126) | 16 A |
| Automatic switching summer/winter time (EF002977) | Yes |
Product Description
TSDW1COA-1
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
