TS-UK 6-T

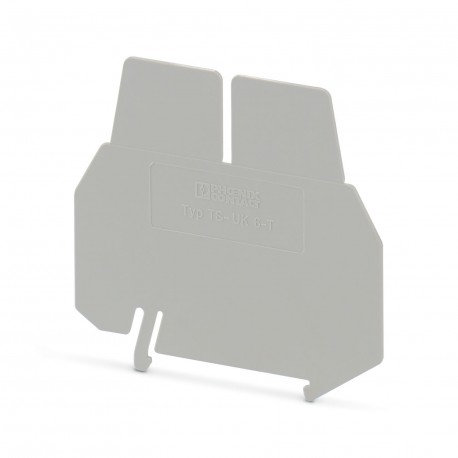

TS-UK 6-T 3072820 PHOENIX CONTACT Separating plate
$0.00USD
3249 in stock
Key Specifications
GTIN:4055626229324
Orderkey:3072820
Catalog page:Page 246 (C-1-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626229324 |
| Orderkey | 3072820 |
| Catalog page | Page 246 (C-1-2017) |
| Packing unit | 10 pc |
| Width (General) | 1 mm |
| Height (General) | 62.5 mm |
| Length (General) | 66.5 mm |
| Country of origin | IN (India) |
| Custom tariff number | 85389099 |
| Minimum order quantity | 10 pc |
| Height NS 35/15 (General) | 73.5 mm |
| Height NS 35/7,5 (General) | 66 mm |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Key Commercial Data) | PA |
| Weight per Piece (excluding packing) | 3.790 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| NF F16-101, NF F10-102 Class F (Dimensions) | 2 |
| NF F16-101, NF F10-102 Class I (Dimensions) | 2 |
| Oxygen index (DIN EN ISO 4589-2) (Dimensions) | >32 % |
| Flammability rating according to UL 94 (General) | V0 |
| Flame test method (DIN EN 60695-11-10) (Dimensions) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Dimensions) | passed |
| Surface flammability NFPA 130 (ASTM E 162) (Dimensions) | passed |
| Static insulating material application in cold (Dimensions) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Dimensions) | Test passed |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Dimensions) | 28 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Dimensions) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Dimensions) | passed |
| Relative insulation material temperature index (Elec., UL 746 B) (Dimensions) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Dimensions) | 130 °C |
Product Description
Spacer plate, length: 66.5 mm, width: 1 mm, height: 62.5 mm, colour: grey
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
