In Stock Hot Product
TS-700-224B

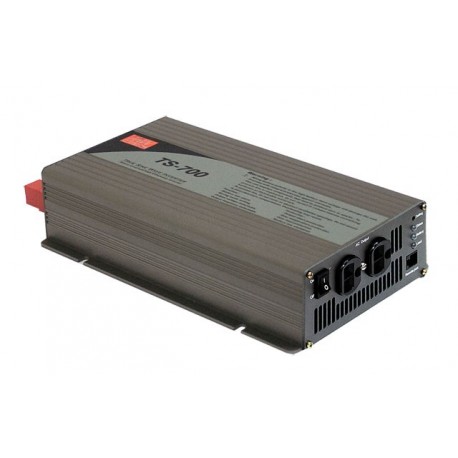

TS-700-224B MEANWELL True Sine Wave DC-AC Power Inverter, battery 24VDC/38A, Output 230VAC, 700W, EU AC Outp..
$0.00USD
3627 in stock
Key Specifications
Fan:Yes
Name:TS-700-224B
State:Recommended Model
Stock:Yes
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Fan | Yes |
| Name | TS-700-224B |
| State | Recommended Model |
| Stock | Yes |
| Alarms | Low Battery |
| Format | Box |
| Series | TS-700 |
| Approvals | EC |
| Input Vcc | 24,00 |
| Power (W) | 700,00 |
| Width (mm) | 184.00 |
| Height (mm) | 295.00 |
| Output type | CA. Sine |
| Applications | Appliances, Industrial, Telecommunication |
| Manufacturer | MEAN WELL |
| Product type | Inverters DC/AC |
| Isolation (V) | 3.000,00 |
| Peak Power (W) | One thousand four hundred |
| Input connector | Screw-Type |
| Long/Background | 70.00 |
| Long Description | Inverter sine wave DC/AC.Format box.Input range21-30vdc.Output voltage200, 220, 230 or 240vacselectable by setting button.Output frequency: 50 or 60 Hz selectable.Power:700WDimensions (Length x Width x Height ):295 x 184 x 70mm3 years warrantyManufacturer: MEAN WELL |
| Output connector | European Plug |
| Output frequency | 50 Hz, 60 Hz |
| Warranty (Years) | 3,00 |
| Country of Origin | Taiwan |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inverter sine wave DC/AC.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
